Worm Gear Driven Stainless Steel Body And PTFE Seated Wafer Type Butterfly Valve

Name: Worm Gear Driven Stainless Steel Body And PTFE Seated Wafer Type Butterfly Valve
Brand: Shanghai Jianggong Valve Manufacturing Co., Ltd.
SKU: D371F-16P
Price: 319.90 USD
Availability: InStock

Product Details

Place of Origin: CHINA

Brand Name: JGPV

Model Number: D371F-16P

Payment & Shipping Terms

Minimum Order Quantity: 10 sets

Price: USD39.9/pc - USD599.9/pc

Packaging Details: Plywood box safety packing

Delivery Time: 14 days

Payment Terms: L/C, T/T, Western Union

Supply Ability: 500pcs per month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                Worm Gear Driven Butterfly Valve, Stainless Steel Body Butterfly Valve, PTFE Seated Butterfly Valve


Standard Or Non-standard:	Standard	Product Features:	Corrosive Medium Pipeline Control Valve Product
Purpose:	Open And Shut Off Pipeline	Structure:	Butterfly VLAVE
Manufacturing Craft:	Stainless Steel	Body Material:	CF8
Sealing Type:	PTFE	Port Size:	DN50-DN1200
Test Standard:	Strength & Sealing Test, Support Client Choose	Quality Warranty:	18 Months

Standard Or Non-standard:	Standard
Product Features:	Corrosive Medium Pipeline Control Valve Product
Purpose:	Open And Shut Off Pipeline
Structure:	Butterfly VLAVE
Manufacturing Craft:	Stainless Steel
Body Material:	CF8
Sealing Type:	PTFE
Port Size:	DN50-DN1200
Test Standard:	Strength & Sealing Test, Support Client Choose
Quality Warranty:	18 Months

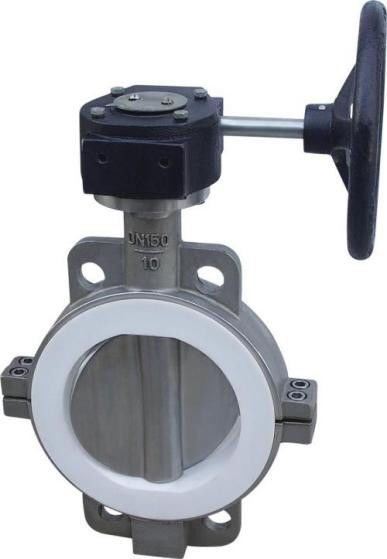

Worm Gear Driven Stainless Steel Body And PTFE Seated Wafer Type Butterfly Valve

Product Introduction:

Wafer type butterfly valve product consists of PTFE seal and with worm gear actuator, suitable for regulating flow rate and intercepting medium in water supply and drainage pipes of food, medicine, chemical industry, petroleum, electric power, light textile, paper making etc.

Product specification parameters:

Type number		D71F-16P
Nominal Diameter DN(mm)		50～1200
Nominal Pressure PN(MPa)		1.6
Control method		Level, worm gear, pneumatic and electric actuators
Power supply		AC380V
Main parts	Valve body	Stainless steel 304 (CF8)
	Disc	Stainless steel 304 (CF8)
	Valve seat	PTFE
	Axle	Stainless steel 304 (CF8)
Medium suitable:		Water, air, oil and nitric acid etc corrosive medium
Working temperature		150≤℃
Connection type		Wafer type

Product features:

Small and light, easy to disassemble and repair, can be installed in any location.
Simple structure, compact, 90°rotation start quickly.
small operating torque, small effort.
flow characteristics tend to be straight, good regulation performance.
opening and closing test times up to tens of thousands of times, long life.
The sealing element can be replaced, the sealing is reliable to achieve two-way sealing, and the leakage of gas test is zero.
sealing material aging, corrosion resistance, can be applied to a variety of media.
