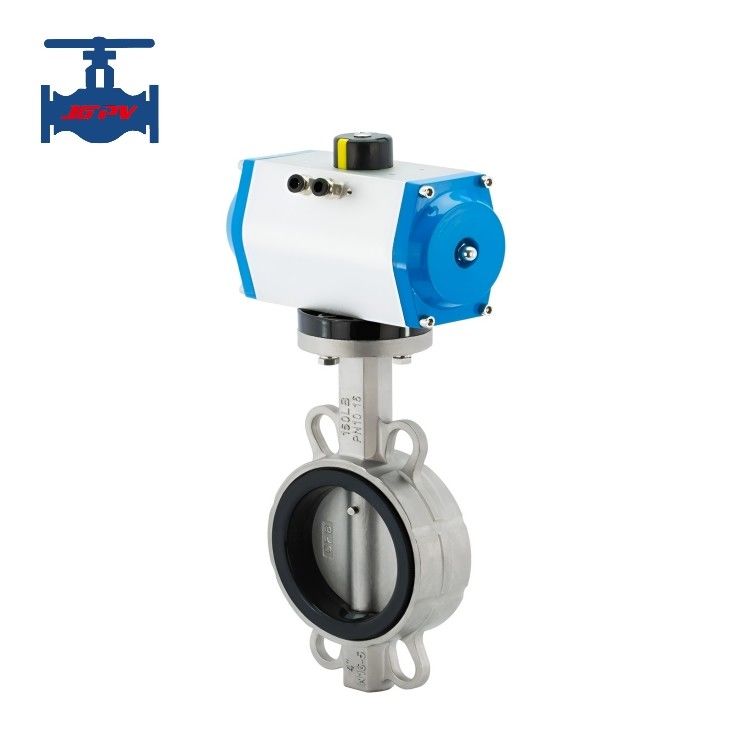

Stainless Steel Wafer Pneumatic Butterfly Valve

Product Details

Place of Origin: China

Payment & Shipping Terms

Minimum Order Quantity: 1set

Packaging Details: Plywood box safety packing

Delivery Time: 14 days

Payment Terms: L/C,T/T,Western Union

Supply Ability: 100pcs per month

Get Best Price

Product Details

Product Description

Highlight:

Application::	General	Medium Type::	Water, Steam And Oil Etc.
Mounting Type::	Direct Mount	Standard Or Non-Standard::	Standard
Flow Way::	Two Way	Actuation::	Manual, Electric, Pneumatic,Automatic
Sealing Performance::	Sealing	Working Temperature::	Normal Temperature And High Temperature
Pressure Application::	Normal Pressure	Quality Warranty::	18 Months

Application::	General
Medium Type::	Water, Steam And Oil Etc.
Mounting Type::	Direct Mount
Standard Or Non-Standard::	Standard
Flow Way::	Two Way
Actuation::	Manual, Electric, Pneumatic,Automatic
Sealing Performance::	Sealing
Working Temperature::	Normal Temperature And High Temperature
Pressure Application::	Normal Pressure
Quality Warranty::	18 Months

Stainless Steel Wafer Pneumatic Butterfly Valve

Highlight: Stainless Steel Wafer Pneumatic Butterfly Valve

Product introduction:

In the cylindrical channel of the butterfly valve body, the disk-shaped butterfly disc rotates around the axis at an angle between 0° and 90°. When rotated to 90°, the valve is fully open. It is connected between two pipeline flanges by double-ended bolts, featuring a simple structure, small size, light weight, and composed of only a few components. Moreover, it can be quickly opened or closed with a 90° rotation for easy operation, while the electric lug butterfly valve has excellent fluid control characteristics. When the butterfly valve is in the fully open position, the thickness of the butterfly disc is the only resistance for the medium flowing through the valve body, so the pressure drop generated by this lug-type electric butterfly valve is very small, thus having good flow control characteristics.Butterfly valves have two sealing types: elastic seal and metal seal. For elastic seal valves, the sealing ring can be inlaid on the valve body or attached to the periphery of the butterfly disc. They are widely used not only in general industries such as petroleum, gas, chemical, and water treatment but also in the cooling water systems of thermal power stations.

Product technical parameters:

Nominal Diameter DN (mm)		50~1200
Nominal Pressure PN (MPa)		0.6～4.0
Test Pressure (MPa)	Strength (water)	0.9～6.0
Test Pressure (MPa)	Enclose (Water)	0.66～4.4
Main Components	Body	Stainless steel/Carbon steel/alloy steel
	valve plate	Stainless steel/Carbon steel/alloy steel
	valve stem	2Cr13 stainless steel
	Packing	PTFE, flexible graphite
	Shaft	Stainless steel, PTFE, cemented carbide
Working temperature		-40～570℃
Medium suitable		Water, oil, steam, acid and alkali and other corrosive media

Product features:

The pneumatic butterfly valve adopts a centerline structure with a sealing function that tightens as it closes, ensuring reliable sealing performance.
The sealing pair is made of stainless steel and NBR oil-resistant rubber, guaranteeing a long service life.
The rubber sealing ring can be positioned on either the valve body or the butterfly disc, adapting to media with different characteristics for user selection.
The butterfly disc features a frame structure, offering high strength, a large flow area, and low flow resistance.
The overall enamel coating effectively prevents corrosion. By simply replacing the sealing seat material, the valve can be used for different media.
The wafer pneumatic butterfly valve has a bidirectional sealing function, allowing installation in any direction without restrictions from media flow direction or spatial position.
The soft-sealed pneumatic butterfly valve boasts a unique structure, ensuring flexible, labor-saving, and convenient operation.
