High-Sensitivity Pressure Reducing Valve for Water Steam Oil

Product Details

Place of Origin: China

Brand Name: JGPV

Payment & Shipping Terms

Minimum Order Quantity: 1set

Packaging Details: Plywood box safety packing

Delivery Time: 14 days

Payment Terms: L/C,T/T,Western Union

Supply Ability: 500 Set per month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                high-sensitivity pressure reducing valve, water steam oil control valve, pipe pressure reducing valve


Application::	General	Certificate::	ISO9001, ISO14001
Medium Type::	Water, Steam And Oil Etc.	Connection::	Threaded / Flanged / Welded
Standard Or Non-Standard::	Standard	Flow Way::	Two Way
Actuation::	Manual, Electric, Pneumatic,Automatic	Sealing Performance::	Sealing
Working Temperature::	Normal Temperature And High Temperature	Pressure Application::	Normal Pressure
Quality Warranty::	18 Months

Application::	General
Certificate::	ISO9001, ISO14001
Medium Type::	Water, Steam And Oil Etc.
Connection::	Threaded / Flanged / Welded
Standard Or Non-Standard::	Standard
Flow Way::	Two Way
Actuation::	Manual, Electric, Pneumatic,Automatic
Sealing Performance::	Sealing
Working Temperature::	Normal Temperature And High Temperature
Pressure Application::	Normal Pressure
Quality Warranty::	18 Months

High-Sensitivity Pressure Reducing Valve for Water Steam Oil

High-sensitivity Pressure Reducing Valve

Product Specifications

Attribute	Value
Application:	General
Certificate:	ISO9001, ISO14001
Medium Type:	Water, steam and oil etc.
Connection:	Threaded / Flanged / Welded
Standard Or Non-Standard:	Standard
Flow way:	Two way
Actuation:	Manual, Electric, Pneumatic, Automatic
Sealing Performance:	Sealing
Working Temperature:	Normal Temperature And High Temperature
Pressure Application:	Normal Pressure
Quality Warranty:	18 Months

Product Description

The pressure reducing valve is a pilot-operated piston type pressure reducing valve, consisting of two parts: the main valve and the pilot valve. The main valve is mainly composed of components such as a valve seat, main valve disc, piston, and spring. The pilot valve is mainly composed of components such as a valve seat, valve disc, diaphragm, spring, and adjusting spring.

The outlet pressure is set by adjusting the pressure of the adjusting spring. The diaphragm senses changes in the outlet pressure, and the opening and closing of the pilot valve drive the piston to adjust the size of the flow area at the throttling part of the main valve, thereby achieving the functions of pressure reduction and pressure stabilization.

Technical Parameters

Nominal pressure	300lb
Test pressure standard	Strength test (water): 7.7 MPa Sealing test (water): 5.62 MPa Sealing test (air): 0.6 MPa
Maximum working temperature	300 ℃
Medium applicable	Water, steam, oil etc non-corrosive gas or liquids

Remark: valve body test didn't include diaphragm.

Key Features

The sensing efficiency for outlet pressure changes has been improved, sensitivity has been enhanced, and pressure deviations caused by factors such as upstream pressure changes and flow rate changes have been reduced.
The streamline distribution has been optimized, and noise has been lowered.
The structure of the sealing surface has been improved, extending the service life of the sealing surface.

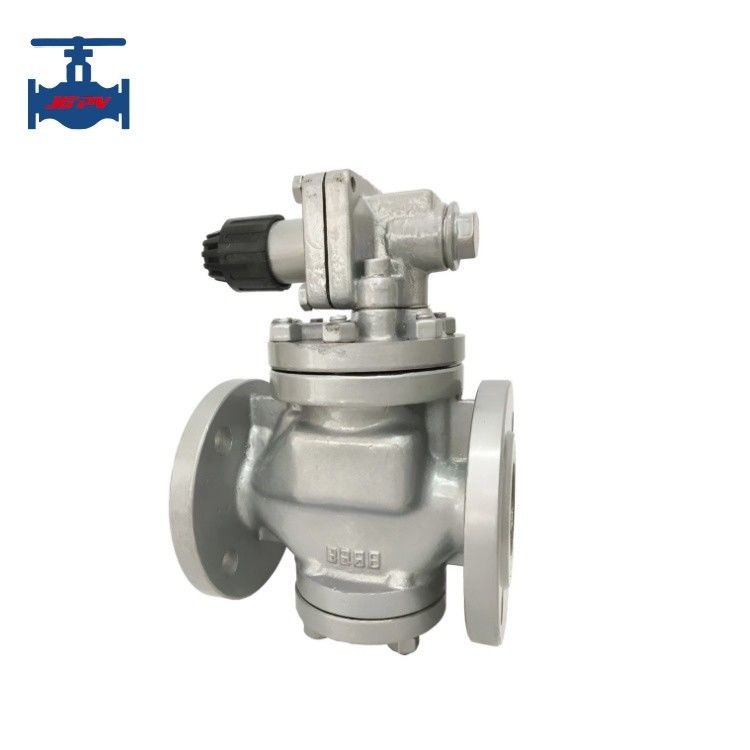

Product Images
