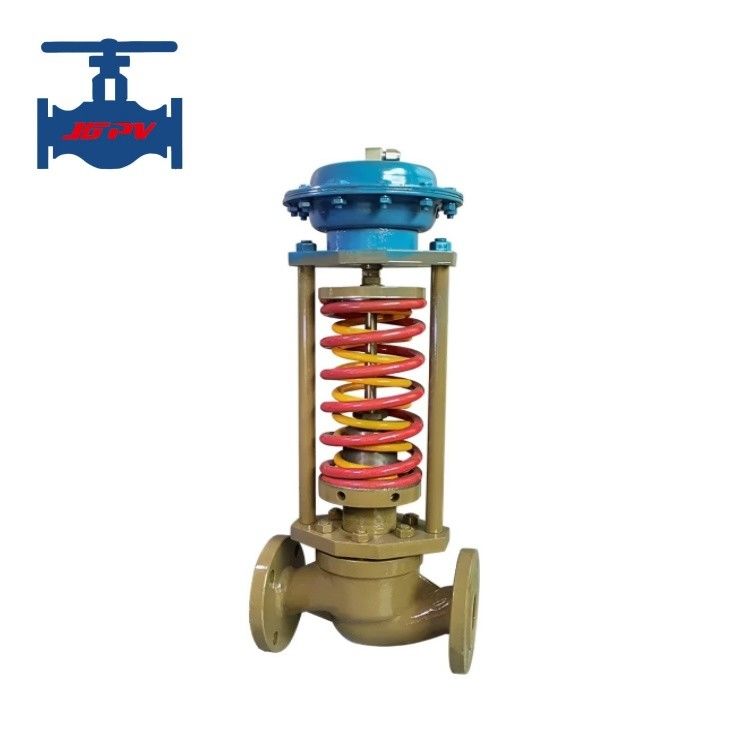

Self-Operated Control Valve for Water Steam Oil Flow Regulation

Product Details

Place of Origin: China

Brand Name: JGPV

Payment & Shipping Terms

Minimum Order Quantity: 1set

Packaging Details: Plywood box safety packing

Delivery Time: 14 days

Payment Terms: L/C,T/T,Western Union

Supply Ability: 500 Set per month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                self-operated control valve for water, steam flow regulation control valve, oil flow control valve with warranty


Application::	General	Certificate::	ISO9001, ISO14001
Medium Type::	Water, Steam And Oil Etc.	Connection::	Threaded / Flanged / Welded
Standard Or Non-Standard::	Standard	Flow Way::	Two Way
Actuation::	Manual, Electric, Pneumatic,Automatic	Sealing Performance::	Sealing
Working Temperature::	Normal Temperature And High Temperature	Pressure Application::	Normal Pressure
Quality Warranty::	18 Months

Application::	General
Certificate::	ISO9001, ISO14001
Medium Type::	Water, Steam And Oil Etc.
Connection::	Threaded / Flanged / Welded
Standard Or Non-Standard::	Standard
Flow Way::	Two Way
Actuation::	Manual, Electric, Pneumatic,Automatic
Sealing Performance::	Sealing
Working Temperature::	Normal Temperature And High Temperature
Pressure Application::	Normal Pressure
Quality Warranty::	18 Months

Self-Operated Control Valve for Water Steam Oil Flow Regulation

Self-operated Control Valve

Product Specifications

Attribute	Value
Application:	General
Certificate:	ISO9001, ISO14001
Medium Type:	Water, steam and oil etc.
Connection:	Threaded / Flanged / Welded
Standard Or Non-Standard:	Standard
Flow way:	Two way
Actuation:	Manual, Electric, Pneumatic, Automatic
Sealing Performance:	Sealing
Working Temperature:	Normal Temperature And High Temperature
Pressure Application:	Normal Pressure
Quality Warranty:	18 Months

Product Overview

Self-operated Control Valve

The self-operated flow control valve (self-operated balancing valve) is an intuitive and simple flow regulation and control device. When applied in a pipe network, this valve can directly set the flow rate according to the design. Driven by water, the valve can automatically eliminate flow deviations caused by residual pressure heads in the pipeline and pressure fluctuations. Regardless of changes in system pressure, it maintains the set flow rate constant. These functions enable the pipe network flow regulation to be completed in one go, turning the pipe network adjustment work into a simple flow distribution task and effectively solving the hydraulic imbalance of the pipe network.

Technical Parameters

Parameter	Value
Nominal Diameter DN(mm)	40～500
Nominal Pressure PN(MPa)	1.0～1.6
Nominal PressurePs(MPa)	Strength Test: 1.5～2.4 Sealing Test: 1.1～1.76
Medium Temperature	0-150℃
Operating Pressure Difference Range	20-600Kpa

Key Features

The flow rate can be set according to design or actual requirements, and it can automatically eliminate pressure difference fluctuations in the system to maintain a constant flow rate.
All flow display values are randomly calibrated flow rates on the test bench (in m³/h).
It completely resolves the contradiction of large pressure difference at the near end and small pressure difference at the far end.
It overcomes the phenomenon of uneven cold and heat in the system and improves the quality of heating (or cooling) supply.
It reduces design workload, eliminating the need for complex pipe hydraulic calculations.
It reduces the system's circulating water volume and lowers system resistance.
It eliminates the need for flow redistribution work when switching heat sources in multi-heat-source pipe networks.

Product Images
