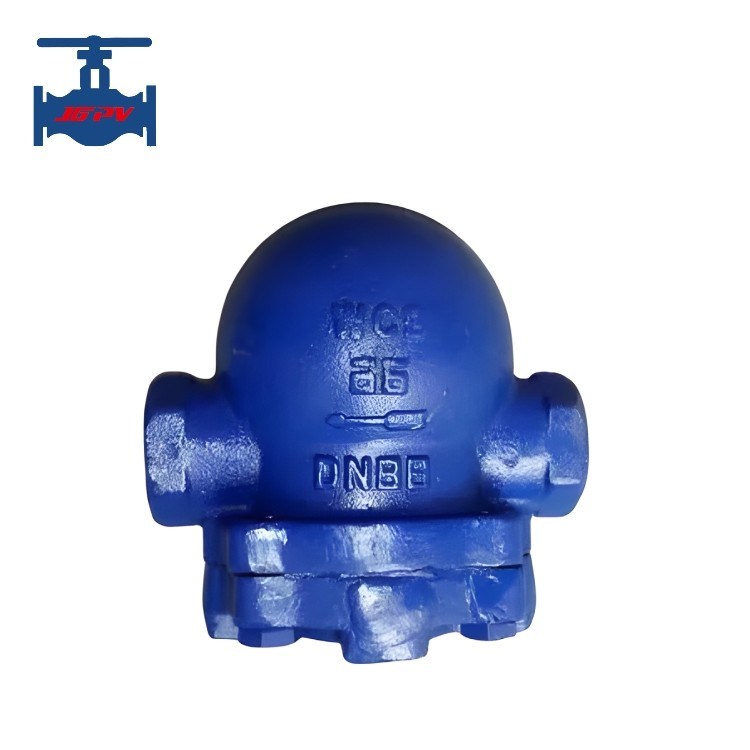

Cast Steel Level Ball Float Steam Trap BSP NPT Threaded Connection For Air / Steam
Cast Steel Level Ball Float Steam Trap BSP NPT Threaded Connection For Air And Steam Use
Product introduction:
A lever ball float steam trap is a valve used in steam pipelines and equipment, which can automatically discharge condensate, air, and other non condensable gases, and prevent water and steam leakage. When equipment that uses and utilizes steam only requires steam, condensation water will definitely be generated inside such equipment, which becomes a harmful fluid and also mixes with air and other non condensable gases, becoming the cause of equipment failure and reduced performance. In this case, the most important functions of the drain valve are as follows:
(1) it can quickly remove the generated condensate.
(2) Prevent steam leakage.
(3) Remove air and other non condensable gases.
The lever ball float drain valve is used in various steam heating equipment, steam pipeline networks, condensate recovery systems, and working conditions that require quick discharge of condensate. It can quickly, automatically, and continuously discharge condensate, effectively prevent steam leakage, and achieve the best heating effect.
Product component and performance:
| Working pressure |
0.01Mpa |
Working temperature (Cast steel) |
425℃ |
| Minimum cooling |
≈0℃ |
Working temperature (Stainless steel) |
525℃ |
| Loading leakage rate |
≈0 |
Medium type |
Saturated steam, condensed water |
| Allowable back pressure rate |
80% |
Air vent device |
Stainless steel, hard alloy |
| Body and bonnet |
WCB/304 |
Floating ball |
Stainless steel |
| Seat |
2Cr13/304 |
Filter |
Stainless steel |
Product application:
1. The heating equipment can continuously discharge saturated condensate without water accumulation, thus achieving high thermal efficiency.
2. When the steam pressure changes, it is not affected. The float ball with a lever automatically adjusts the valve seat opening, ensuring continuous operation and stable performance.
3. The automatic air exhaust device has good air exhaust performance and can remove non condensing hot and cold gases without air lock phenomenon, ensuring smooth operation without noise.
4. Superior sealing performance, the sealing element adopts a spherical structure, and there is no concentrated wear during operation, with a long service life.
