Product Details
Place of Origin: China
Brand Name: JGPV
Model Number: CS49H-JGPV
Payment & Shipping Terms
Minimum Order Quantity: 1 Set
Price: USD19.9/Set - USD539.9/Set
Packaging Details: Plywood box safety packing
Delivery Time: One week
Payment Terms: L/C, T/T, Western Union
Supply Ability: 500 Set per month
Standard Or Non-standard: |
Standard |
Application: |
General |
Purpose: |
Prevent Steam Leakage |
Product Features: |
Improve Thermal Efficiency |
Raw Material: |
WCB, CF8, CF8M |
Port Size: |
DN15-DN150 |
Connection: |
Flange, BSP NPT Threaded |
Working Temperature: |
Up To 300 Degrees Celsius |
Test Standard: |
Strength Test And Sealing Test And Client Requirement |
Quality Warranty: |
18 Months |
Name: |
Steam Trap Valve |
Standard Or Non-standard: |
Standard |
Application: |
General |
Purpose: |
Prevent Steam Leakage |
Product Features: |
Improve Thermal Efficiency |
Raw Material: |
WCB, CF8, CF8M |
Port Size: |
DN15-DN150 |
Connection: |
Flange, BSP NPT Threaded |
Working Temperature: |
Up To 300 Degrees Celsius |
Test Standard: |
Strength Test And Sealing Test And Client Requirement |
Quality Warranty: |
18 Months |
Name: |
Steam Trap Valve |

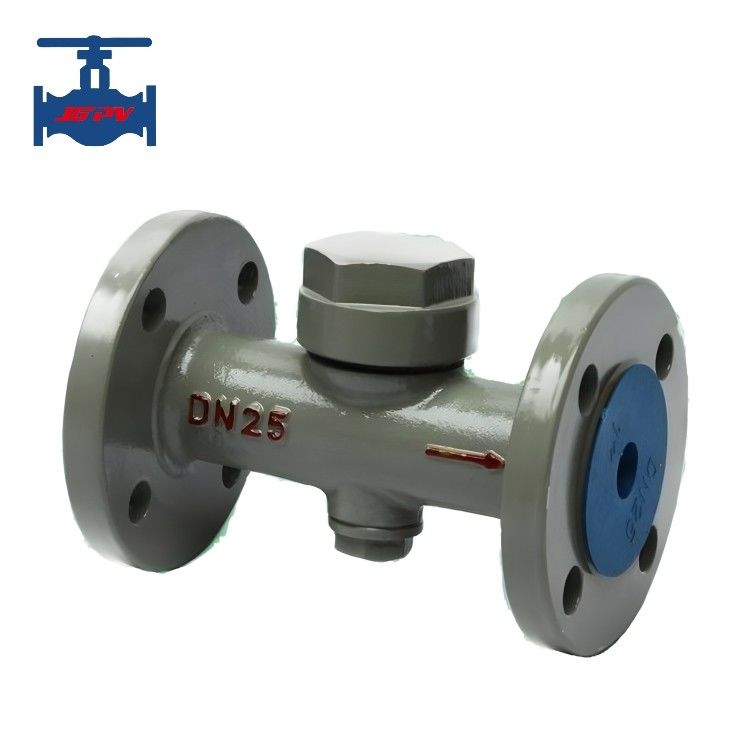

ASTM A216-WCB Thermodynamic Type Steam Trap For Steam Pipeline Use
Product introduction:
The thermodynamic disc type steam trap valve is based on the principle of thermodynamics, utilizing the different characteristics of steam and condensate thermodynamics. Due to the different flow rates and volumes of steam and condensate passing through the valve hole, it causes dynamic and static pressure changes in kinetic energy and potential energy, resulting in changes in the pressure difference between the upper and lower parts of the valve plate, driving the valve plate to open and close the valve seat hole, thereby achieving the purpose of steam blockage and drainage. Disc type steam trap valves are widely used in steam main pipelines, heat tracing pipelines, jacket volutes, and various small steam equipment.
Product component and performance:
| Working Pressure | 0.05-6.4MPa | Max working temperature | 325℃ |
| Port size | DN15-DN150 | Leakage rate | <3% of actual displacement |
| Under-cooling | 8 ℃ | Max back pressure | 50% |
| Body & bonnet | WCB, CF8 | Disc plate | 2Cr13, CF8 |
| Seat | 2Cr13, CF8 | Filter | CF8 |
1. This valve has a sturdy structure, light weight, small volume, and a wide pressure range, without the need for any adjustment.
2. Equipped with an air discharge device, it can quickly remove the initial air and ensure rapid pneumatic operation.
3. It can withstand overheated steam, has good resistance to freezing, and installation is not restricted, all of which can work normally.
