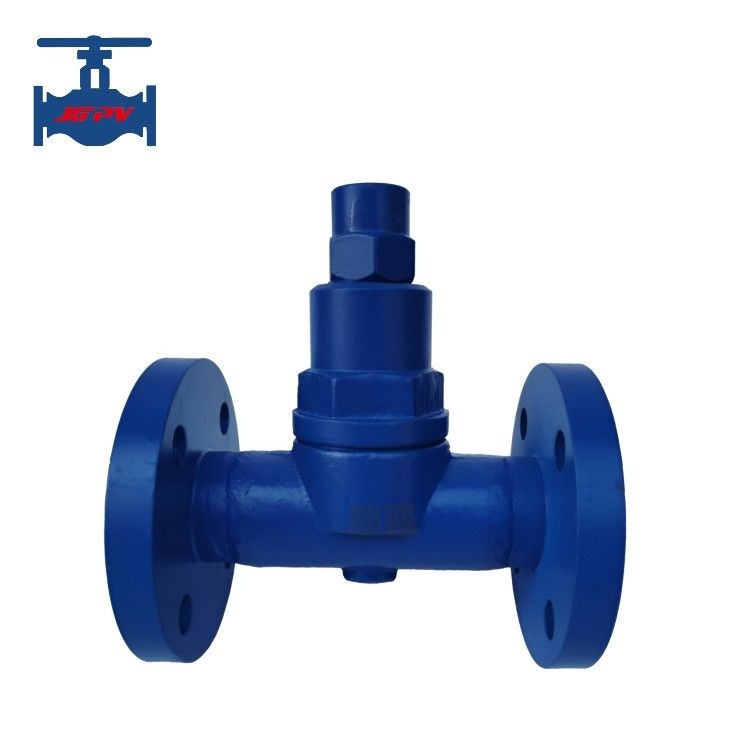

Cast Steel Thermostatic Adjustable Bimetallic Steam Trap Displacement

Name: Cast Steel Thermostatic Adjustable Bimetallic Steam Trap Displacement
Brand: Shanghai Jianggong Valve Manufacturing Co., Ltd.
SKU: CS46H-JGPV
Price: 209.90 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: JGPV

Model Number: CS46H-JGPV

Payment & Shipping Terms

Minimum Order Quantity: 1 Set

Price: USD19.9/Set - USD399.9/Set

Packaging Details: Plywood box safety packing

Delivery Time: One week

Payment Terms: L/C, T/T, Western Union

Supply Ability: 500 Set per month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                Adjustable Bimetallic Steam Trap, Bimetallic Thermostatic Steam Trap, Thermostatic Steam Trap Bimetallic Type


Standard Or Non-standard:	Standard	Application:	General
Purpose:	Prevent Steam Leakage	Product Features:	Improve Thermal Efficiency
Raw Material:	WCB, CF8, CF8M	Port Size:	DN15-DN50
Connection:	Flange, BSP NPT Threaded	Working Temperature:	Up To 300 Degrees Celsius
Test Standard:	Strength Test And Sealing Test And Client Requirement	Quality Warranty:	18 Months
Name:	Steam Trap Valve

Standard Or Non-standard:	Standard
Application:	General
Purpose:	Prevent Steam Leakage
Product Features:	Improve Thermal Efficiency
Raw Material:	WCB, CF8, CF8M
Port Size:	DN15-DN50
Connection:	Flange, BSP NPT Threaded
Working Temperature:	Up To 300 Degrees Celsius
Test Standard:	Strength Test And Sealing Test And Client Requirement
Quality Warranty:	18 Months
Name:	Steam Trap Valve

Cast Steel Thermostatic Adjustable Bimetallic Steam Trap Displacement

Cast Steel Thermostatic Adjustable Bimetallic Small Displacement Steam Trap

Product introduction:

Adjustable bimetallic steam trap has a unique structure, excellent performance, large drainage capacity, adjustable leakage temperature, and a sub-cooling of around 2 ℃, which may eliminate a large amount of cold air and other non condensable vapors and will not cause steam blockage. Replaceable internal components, easy to maintain and adjust. Using the principle of thermal sensing to discharge condensed water can handle large start-up loads. As the system temperature and pressure increase, the stacked nickel chromium bimetallic components of the drain valve begin to expand. When steam reaches the drain valve, the valve is tightly closed to prevent steam loss. Ensure that the system operates efficiently while saving energy.

Product component and performance:

Model: CS46H	CS47H
Purpose	Discharge moisture from steam
Pressure nominal	1.6-6.4MPa
Port size	DN15-DN150
Raw material	Cast steel and stainless steel
Operation	Automatic
Connection	Flange and threaded connection
Medium type	Steam and condensed water
Working temperature	200℃

Product application:

1. The thermosensitive element of this bimetallic plate drain valve is made of imported materials, which have high sensitivity, durability, and durability.
2. The discharge temperature of condensate can be adjusted to effectively utilize the sensible heat of condensate.
3. Automatically adjust the drainage amount with a fixed subcooling, and timely discharge the condensate water.
4. Excellent water resistance and automatic air discharge performance.
5. This valve has a small volume and can be installed at any angle, with good flexibility.
6. There is high-temperature condensate in front of the valve, forming a water seal without steam leakage.
7. Equipped with a large circulation area filter screen, it can replace internal components and clean impurities online, making maintenance convenient.
