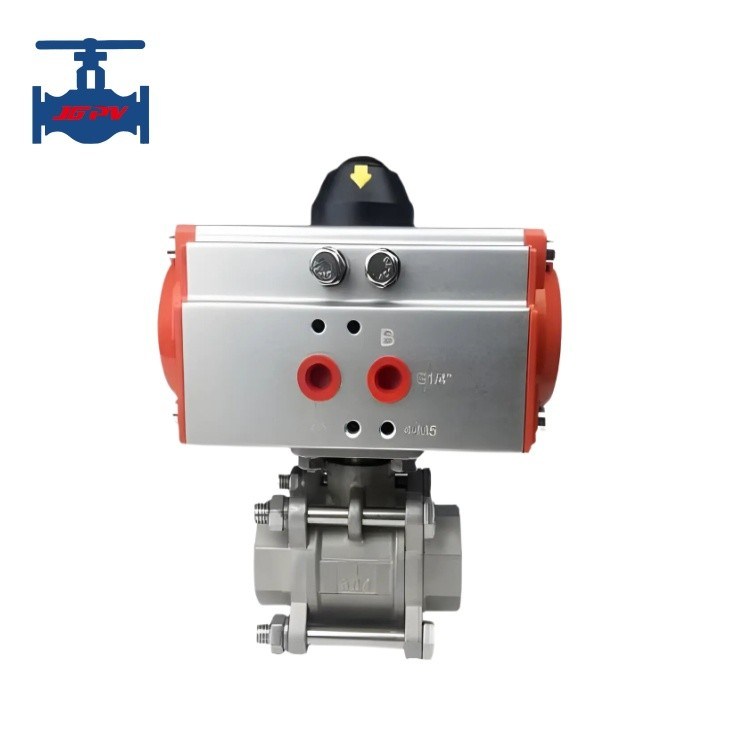

Stainless Steel Pneumatic Valve CF8 CF8M 3PC Screw Type Ball Valve

Pneumatic Actuator Driven Stainless Stell CF8 CF8M 3PC Screw Type Ball Valve

Product introductioin:

The three piece ball valve and gate valve belong to the same type of valve, with the difference being that their closing part is a sphere, which rotates around the centerline of the valve body to achieve opening and closing. Ball valves are mainly used in pipelines to cut off, distribute, and change the flow direction of the medium. Three piece ball valve is a widely used new type of valve.

The three piece ball valve can be driven by a pneumatic actuator, which has a relatively fast execution speed, with the fastest opening and closing speed of 0.05 seconds per time, so it is usually also called a pneumatic quick cut-off ball valve. Pneumatic ball valves are usually equipped with various accessories, such as solenoid valves, air source treatment triplets, limit switches, positioners, control boxes, etc., to achieve local control and remote centralized control. The valve can be controlled in the control room without the need to manually control it on site or in high-altitude and dangerous areas, which greatly saves human resources, time, and safety.

Product technical paratmeters:

Product features:

1. The pneumatic actuator driven method makes it fast response and precise control and improve production efficiency.

2. The pneumatic thin type ball valves are usually very sturdy and can work stably in various harsh environmental conditions. In addition, it can effectively prevent medium leakage due to its excellent sealing performance, to ensure the safety of operation.

3. Pneumatic thin type ball valve with simple structure, lower friction coefficient and wear resistance, the service life of the valve is also very long.

4. Pneumatic thin type ball lves can adapt to various fluids, including gas, liquid, slurry, etc. sealing material can be selected  for different mediums application for further enhancing its adaptability.

5. The pneumatic thin type ball valve can be remotely controlled through a control system, which is very important for automated production lines. Valves can be easily opened and closed through preset programs or manual operations.
