T Type / L Type Three Way Ball Valve Manual Operation

Name: T Type / L Type Three Way Ball Valve Manual Operation
Brand: Shanghai Jianggong Valve Manufacturing Co., Ltd.
SKU: Q14F-150lb
Price: 434.90 USD
Availability: InStock

Product Details

Place of Origin: CHINA

Brand Name: JGPV

Model Number: Q14F-150lb

Payment & Shipping Terms

Minimum Order Quantity: 10sets

Price: USD39.9/Set to USD829.9/Set

Packaging Details: Plywood box safety packing

Delivery Time: 10 days

Payment Terms: L/C, T/T, Western Union

Supply Ability: 1000pcs per month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                Manual Operation Three Way Ball Valve, L Type Three Way Ball Valve, T Type Three Way Ball Valve


Standard Or Non-Standard:	Standard	Application:	General
Product Function:	Fluid Direction Adjustment	Working Temperature:	Normal Temperature
Pressure Application:	Low Pressure And Medium Pressure	Medium Application:	Water, Steam, Oil And Corrosive Mediums
Port Size:	1/2" - 6"	Connection:	Flange
Quality Warranty:	18 Months	Test Standard:	Strength Test, Sealing Test And Other Client Needs
Name:	Three-Way Ball Valve

Standard Or Non-Standard:	Standard
Application:	General
Product Function:	Fluid Direction Adjustment
Working Temperature:	Normal Temperature
Pressure Application:	Low Pressure And Medium Pressure
Medium Application:	Water, Steam, Oil And Corrosive Mediums
Port Size:	1/2" - 6"
Connection:	Flange
Quality Warranty:	18 Months
Test Standard:	Strength Test, Sealing Test And Other Client Needs
Name:	Three-Way Ball Valve

T Type / L Type Three Way Ball Valve Manual Operation

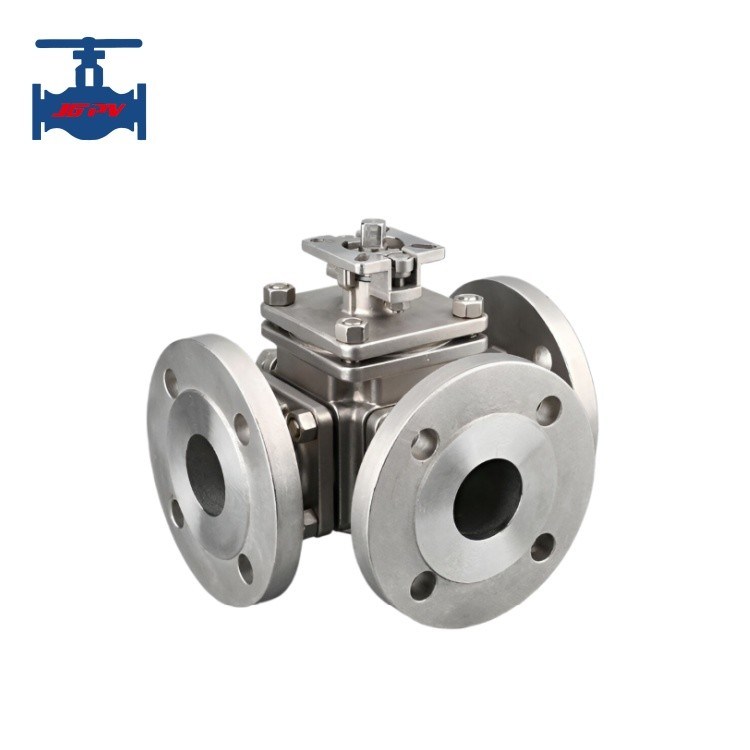

Cast Steel Stainless Steel T Type And L Type Three-Way Ball Valve

Product introduction:

Three-way ball valve is primarily used in pipelines to block, distribute, and alter the direction of medium movement. The three-way ball valve is a three-way rotary ball valve, and the flange three-way ball valve has L-shaped and T-shaped valve cores, which can meet the requirements of different production processes. Any pipeline can be used as an inlet or outlet as needed. The L-shaped valve cuts off two of the three pipelines, while the T-shaped valve achieves the merging and separation of the three connecting pipelines.

Product technical parameters:

Nominal Diameter DN (mm)		15-150
Nominal Pressure PN (MPa)		1.6
Test Pressure (MPa)	Strength (water)	2.4
	Enclose (Water)	1.76
Main Components	Valve body	Stainless steel
	Ball	Stainless steel
	Seat	PTFE
	Axle	Stainless steel
Working temperature		≤120℃
Medium suitable		Water, steam and oil
Connection		BSPT, NPT type
Flow direction		T type and L type
Driven method		Single acting and double acting pneumatic actuator

Product features:

1. Flexible operation: Three way ball valves can connect and switch multiple flow paths, improving the flexibility and reliability of pipeline systems.
2. Good sealing performance: The three-way ball valve uses high-strength sealing materials such as PTFE, which have good sealing performance and prevent leakage.
3. Simple structure: The three-way ball valve has a simple structure and is easy to install and maintain.
4. Long service life: The three-way ball valve is made of corrosion-resistant materials and has a long service life.
