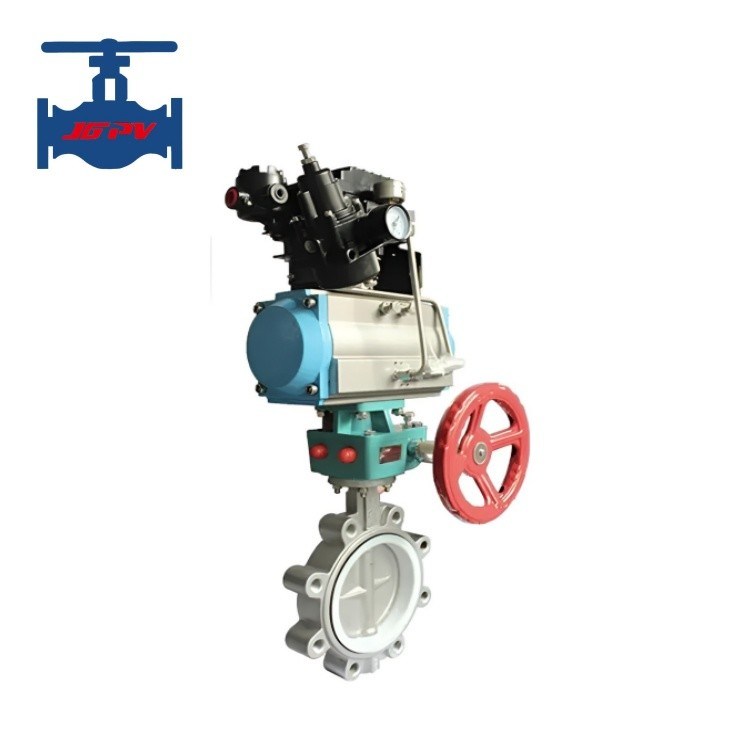

Centerline Butterfly Valve Stainless Steel Lug Type Butterfly Valve With Pneumatic Actuator

Name: Centerline Butterfly Valve Stainless Steel Lug Type Butterfly Valve With Pneumatic Actuator
Brand: Shanghai Jianggong Valve Manufacturing Co., Ltd.
SKU: D671X-150lb
Price: 4,289.90 USD
Availability: InStock

Product Details

Place of Origin: CHINA

Brand Name: JGPV

Model Number: D671X-150lb

Payment & Shipping Terms

Minimum Order Quantity: 10 sets

Price: USD179.9/PC - USD8399.9/PC

Packaging Details: Plywood box safety packing

Delivery Time: 14 days

Payment Terms: L/C, T/T, Western Union

Supply Ability: 1000pcs per month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                Stainless Steel Lug Type Butterfly Valve, Centerline Butterfly Valve, Pneumatic Actuator Butterfly Valve


Standard Or Non-Standard:	Standard	Application:	Industrial Usage
Usage:	Control Fluid Flow	Working Temperature:	Normal Temperature
Pressure Application:	Low Pressure	Medium Type:	Weak Corrosive Medium
Disc Material:	Stainless Steel, WCB, Ductile Iron	Sealing Type:	Soft Seal, EPDM, NBR, PTFE
Port Size:	1/2" - 24"	Quality Warranty:	18 Months
Name:	Centerline Butterfly Valve Stainless Steel

Standard Or Non-Standard:	Standard
Application:	Industrial Usage
Usage:	Control Fluid Flow
Working Temperature:	Normal Temperature
Pressure Application:	Low Pressure
Medium Type:	Weak Corrosive Medium
Disc Material:	Stainless Steel, WCB, Ductile Iron
Sealing Type:	Soft Seal, EPDM, NBR, PTFE
Port Size:	1/2" - 24"
Quality Warranty:	18 Months
Name:	Centerline Butterfly Valve Stainless Steel

Centerline Butterfly Valve Stainless Steel Lug Type Butterfly Valve With Pneumatic Actuator

Stainless Steel Wafer Type Butterfly Valve With PTFE Lined And Pneumatic Actuator

Product introduction:

Concentric butterfly, stainless steel wafer type center line butterfly valve with stainless steel disc and PTFE seat, PTFE lined unit, and matched with double acting / single acting pneumatic actuator make it perfectly suitable for automatic control system in industries such as food, environmental protection, light industry, petroleum, papermaking, chemical industry, teaching and research equipment and power etc fields.

Product technical paramters:

Nominal Diameter DN (mm)		40~600 / 1/2" - 24"
Nominal Pressure PN (MPa)		1.0~1.6/ Class150
Test Pressure (MPa)	Strength (water)	1.5~2.4
Test Pressure (MPa)	Enclose (Water)	1.1~1.76
Main Components	Valve body	CF8, CF8M, WCB, Ductile iron
	Disc	CF8, CF8M, WCB, Ductile iron
	Seat	PTFE, NBR, EPDM
	Axle	2Cr13, 304, 316
Working temperature		≤150℃
Medium suitable		Water and oil
Connection		Wafer type

Product features:

1. Simple structure, small operating torque and fast opening by only rotating 90 degrees;

2. Internal leakage point is eliminated by connecting valve plate with valve rod without pin;

3.The butterfly body, disc, seat and stem can be with various raw material as the request.

4.The valve can be flange or the wafer.

5.The motivation can be the handle, pneumatic and electric actuators.

•
