Stainless Steel Wafer Type Butterfly Valve With PTFE Lined And Pneumatic Actuator

Product Details

Place of Origin: CHINA

Brand Name: JGPV

Model Number: D671X-16P

Payment & Shipping Terms

Minimum Order Quantity: 1set

Price: USD79.9/PC - USD6999.9/PC

Packaging Details: Plywood box safety packing

Delivery Time: 14 days

Payment Terms: L/C, T/T, Western Union

Supply Ability: 1000pcs per month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                Stainless Steel Wafer Type Butterfly Valve, Wafer Type Butterfly Valve Pneumatic Actuator, Pneumatic Actuator Butterfly Valve Stainless Steel


Standard Or Non-Standard:	Standard	Application:	Industrial Usage
Usage:	Control Fluid Flow	Working Temperature:	Normal Temperature
Pressure Application:	Low Pressure	Medium Type:	Weak Corrosive Medium
Disc Material:	Stainless Steel	Sealing Type:	Soft Seal, EPDM, NBR
Port Size:	DN40-DN600	Quality Warranty:	18 Months
Name:	Stainless Steel Wafer Type Butterfly Valve

Standard Or Non-Standard:	Standard
Application:	Industrial Usage
Usage:	Control Fluid Flow
Working Temperature:	Normal Temperature
Pressure Application:	Low Pressure
Medium Type:	Weak Corrosive Medium
Disc Material:	Stainless Steel
Sealing Type:	Soft Seal, EPDM, NBR
Port Size:	DN40-DN600
Quality Warranty:	18 Months
Name:	Stainless Steel Wafer Type Butterfly Valve

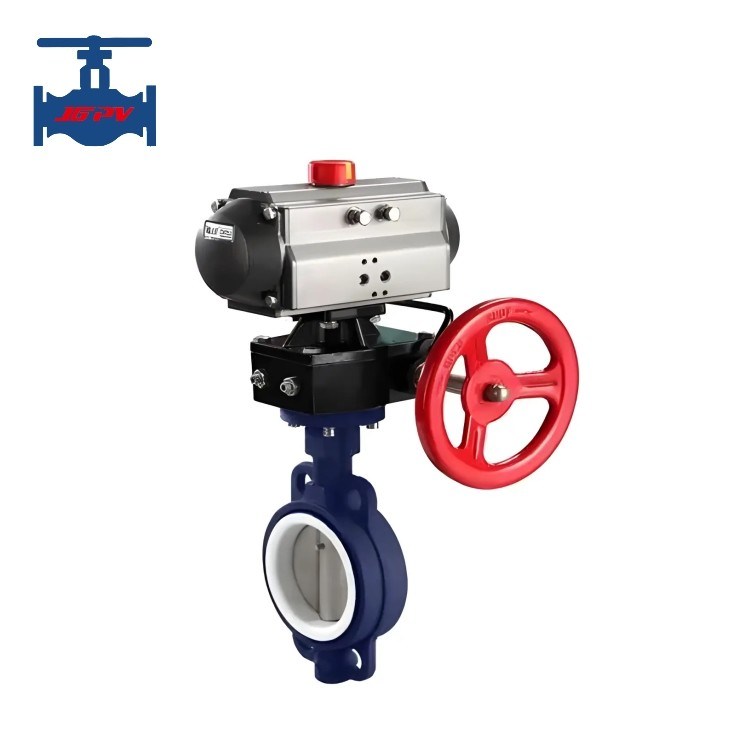

Stainless Steel Wafer Type Butterfly Valve With PTFE Lined And Pneumatic Actuator

Stainless Steel Wafer Type Butterfly Valve With PTFE Lined And Pneumatic Actuator

Product introduction:

Concentric butterfly, stainless steel wafer type center line butterfly valve with stainless steel disc and PTFE seat, PTFE lined unit, and matched with double acting / single acting pneumatic actuator make it perfectly suitable for automatic control system in industries such as food, environmental protection, light industry, petroleum, papermaking, chemical industry, teaching and research equipment and power etc fields.

Product technical paramters:

Nominal Diameter DN (mm)		40~600
Nominal Pressure PN (MPa)		1.0~1.6
Test Pressure (MPa)	Strength (water)	1.5~2.4
Test Pressure (MPa)	Enclose (Water)	1.1~1.76
Main Components	Valve body	CF8, CF8M, CF3, CF3M
	Disc	CF8, CF8M, CF3, CF3M
	Seat	PTFE
	Axle	2Cr13, 304, 316
Working temperature		≤150℃
Medium suitable		Water and oil
Connection		Wafer type

Product features:

1.Compact and portable, easy to remove and maintain, and can be installed at any position;

2. Straight line flow channel make great regulating performance;

3. Simple structure, small operating torque and fast opening by only rotating 90 degrees;

4. Internal leakage point is eliminated by connecting valve plate with valve rod without pin;

•
