Pneumatic Actuator Stainless Steel Gate Valve with Flange Connection for Water Steam Oil Pipeline

Name: Pneumatic Actuator Stainless Steel Gate Valve with Flange Connection for Water Steam Oil Pipeline
Brand: Shanghai Jianggong Valve Manufacturing Co., Ltd.
SKU: Z641H-JGPV
Price: 7,618.50 USD
Availability: InStock

Product Details

Place of Origin: CHINA

Brand Name: JGPV

Model Number: Z641H-JGPV

Payment & Shipping Terms

Minimum Order Quantity: 1set

Price: USD239.5/pc - USD14999/pc

Packaging Details: Plywood box safety packing

Delivery Time: 14 days

Payment Terms: L/C,T/T,Western Union

Supply Ability: 500pcs per month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                stainless steel pneumatic gate valve, flange connection pneumatic actuator valve, water steam oil pipeline valve


Standard Or Non-standard:	Standard	Application:	General
Product Features:	Industrial Valve Product	Purpose:	Pipeline Open And Close Control Automatically
Medium Type:	Water, Steam And Oil	Working Temperature:	Normal Temperature
Pressure Application:	Low Pressure, Medium Pressure And High Pressure	Test Standard:	Strength Test, Sealing Test And Other Client Needs
Quality Warranty:	18 Months	Customized Support:	OEM And ODM Service Available
Name:	Stainless Steel Gate Valve

Standard Or Non-standard:	Standard
Application:	General
Product Features:	Industrial Valve Product
Purpose:	Pipeline Open And Close Control Automatically
Medium Type:	Water, Steam And Oil
Working Temperature:	Normal Temperature
Pressure Application:	Low Pressure, Medium Pressure And High Pressure
Test Standard:	Strength Test, Sealing Test And Other Client Needs
Quality Warranty:	18 Months
Customized Support:	OEM And ODM Service Available
Name:	Stainless Steel Gate Valve

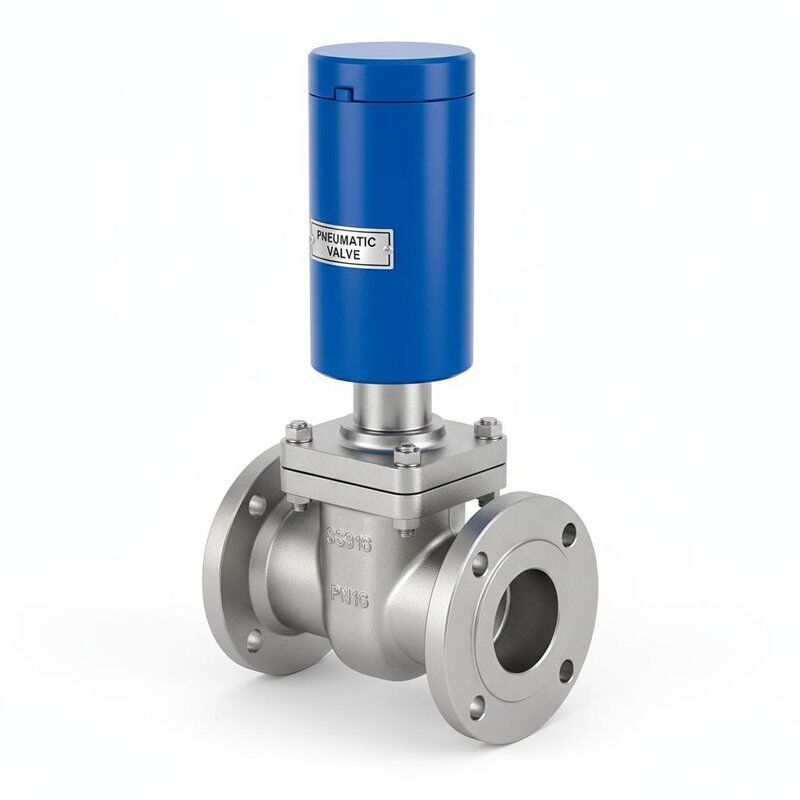

Pneumatic Actuator Stainless Steel Gate Valve with Flange Connection for Water Steam Oil Pipeline

Pneumatic Stainless Steel Gate Valve

Product Overview

Pneumatic Cast Steel Stainless Steel Gate Valve For Water Steam Oil Pipeline Use

Pneumatic gate valve is a gate valve controlled by a pneumatic actuator to achieve the opening and closing of the valve. It can be divided into two parts: the upper part is a pneumatic actuator, and the lower part is a valve. The action force distance of pneumatic actuators is larger than that of valves, the opening and closing speed can be adjusted, the structure is simple, and it is easy to maintain.

During the action process, due to the buffering characteristics of the gas itself, it is not easy to be damaged due to jamming, but it must have an air source, and its control system is also more complex than electric valves. Pneumatic gate valves have a sensitive response and are safe and reliable. Many factories with high control requirements specifically set up compressed air stations for pneumatic instrument control components.

Technical Specifications

Type Number	Z641H-JGPV
Nominal Pressure PN(MPa)	1.0 - 10.0
Nominal Diameter DN(mm)	15～600
Test Pressure (MPa)	Strength (water): 1.5 times of pressure nominal Sealing (water): 1.1 times of pressure nominal
Raw Material	WCB, CF8, CF8M, CF3, CF3M
Suitable Medium	Water, steam, oil and nitric acid etc corrosive medium
Working Temperature	≤425℃
Connection Type	Flange
Operational Method	Handwheel + pneumatic actuator

Product Features

Simple structure, small size, light weight
Highly reliable, safe, long lifespan and convenient maintenance
Can achieve remote control and centralized management operations with simple maintenance workload
Can automatically maintain the open state during the fully open or fully closed process to achieve good adjustment effect and achieve remote control, and can avoid wrong manual operation
Electromagnetic inverters with various special functions can be configured according to user needs to meet various customer requirements
The use of compressed air as the power source to drive the piston transmission system ensures smooth operation, no vibration, low noise, and long service life of the product
