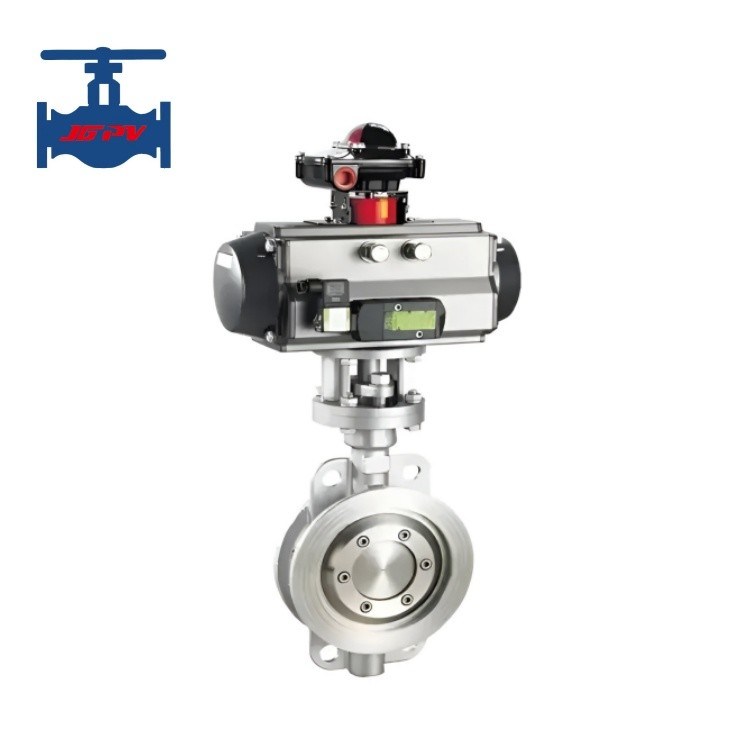

Pneumatic Actuator Driven Cast Steel Stainless Steel Wafer Type Triple Eccentric Butterfly Valve

Name: Pneumatic Actuator Driven Cast Steel Stainless Steel Wafer Type Triple Eccentric Butterfly Valve
Brand: Shanghai Jianggong Valve Manufacturing Co., Ltd.
SKU: D673X-16P
Price: 3,569.90 USD
Availability: InStock

Product Details

Place of Origin: CHINA

Brand Name: JGPV

Model Number: D673X-16P

Payment & Shipping Terms

Minimum Order Quantity: 10sets

Price: USD139.9/PC - USD6999.9/PC

Packaging Details: Plywood box safety packing

Delivery Time: 14 days

Payment Terms: L/C, T/T, Western Union

Supply Ability: 1000pcs per month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                Stainless Steel Butterfly Valve, Pneumatic Actuator Driven Butterfly Valve, Cast Steel Butterfly Valve


Standard Or Non-Standard:	Standard	Application:	Industrial Usage
Usage:	Control Fluid Flow	Working Temperature:	Normal Temperature Amd High Temperature
Pressure Application:	Low Pressure And Medium Pressure	Medium Type:	Water Steam And Weak Corrosive Medium
Disc Material:	Cast Steel And Stainless Steel	Sealing Type:	Hard Alloy
Port Size:	DN40-DN600	Quality Warranty:	18 Months
Name:	Stainless Steel Wafer Type Butterfly Valve

Standard Or Non-Standard:	Standard
Application:	Industrial Usage
Usage:	Control Fluid Flow
Working Temperature:	Normal Temperature Amd High Temperature
Pressure Application:	Low Pressure And Medium Pressure
Medium Type:	Water Steam And Weak Corrosive Medium
Disc Material:	Cast Steel And Stainless Steel
Sealing Type:	Hard Alloy
Port Size:	DN40-DN600
Quality Warranty:	18 Months
Name:	Stainless Steel Wafer Type Butterfly Valve

Pneumatic Actuator Driven Cast Steel Stainless Steel Wafer Type Triple Eccentric Butterfly Valve

Stainless Steel Wafer Type Butterfly Valve With PTFE Lined And Pneumatic Actuator

Product introduction:

Three eccentric metal hard sealed butterfly valve, the valve body and seat are connected components, and the sealing surface layer of the seat is welded with heat-resistant and corrosion-resistant alloy material. Multi layer soft stacked sealing rings are fixed on the valve plate. Compared with traditional butterfly valves, this butterfly valve has high temperature resistance, easy operation, frictionless opening and closing, and compensates for the sealing with the increase of torque of the transmission mechanism when closing, improving the sealing performance and extending the service life of the butterfly valve. It has been widely used in many fields such as petroleum, chemical, metallurgy, hydropower, etc.

Product technical paramters:

Nominal Diameter DN (mm)		50~1200
Nominal Pressure PN (MPa)		0.6~4.0
Test Pressure (MPa)	Strength (water)	0.9~6.0
	Enclose (Water)	0.66~4.4
Main Components	Valve body	CF8, CF8M, WCB
	Disc	CF8, CF8M, WCB
	Seat	CF8, CF8M, WCB
	Axle	2Cr13, 304, 316
Working temperature		≤425℃
Medium suitable		Water,oil, steam and corrosive mediums
Connection		Wafer type
Driven method		Manual, worm gear, pneumatic and electric actuators

Product features:

1. The hard seal butterfly valve adopts a three eccentric hard seal structure, with minimal wear on the valve seat and butterfly plate, and has a sealing function that becomes tighter as it is closed.
2. The sealing ring is made of stainless steel, which has the dual advantages of metal hard sealing and elastic sealing. It has excellent sealing performance in both low and high temperatures, corrosion resistance, and long service life.
3. The sealing surface of the butterfly plate is made of welded hard alloy, which is wear-resistant and has a long service life.
4. The large-sized butterfly plate adopts a frame structure with high strength, large overcurrent area, and low flow resistance.
5. According to user requirements, hard sealed butterfly valves can be designed with bidirectional sealing function, which is not limited by the flow direction of the medium or the spatial position during installation, and can be installed in any direction.

•
