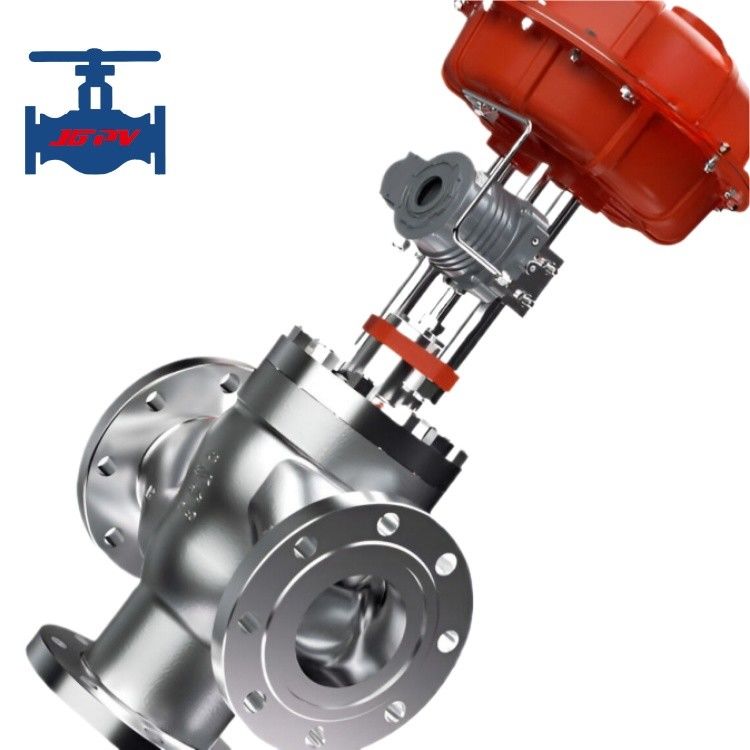

General Electric Control Valve Straight Travel Three Way Control Valve

Name: General Electric Control Valve Straight Travel Three Way Control Valve
Brand: Shanghai Jianggong Valve Manufacturing Co., Ltd.
SKU: L202302-JGPV
Price: 6,729.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: JGPV

Model Number: L202302-JGPV

Payment & Shipping Terms

Minimum Order Quantity: 1 Set

Price: USD559/Set to USD12899.9/Set

Packaging Details: Plywood box safety packing

Delivery Time: Two weeks

Payment Terms: L/C, T/T, Western Union

Supply Ability: 500 Set per month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                General Electric Control Valve, JGPV Electric Control Valve, Straight Travel Three Way Control Valve


Standard Or Non-standard:	Standard	Application:	General
Product Features:	Industrial Automation Control Valve	Purpose:	Flow Combination And Diversion
Structure:	Diaphragm	Manufacturing Craft:	Casting
Port Size:	3/4" - 8"	Connection:	Flanges
Test Standard:	Strength Test And Sealing Test And Client Requirement	Quality Warranty:	18 Months
Name:	Electric Control Valve

Standard Or Non-standard:	Standard
Application:	General
Product Features:	Industrial Automation Control Valve
Purpose:	Flow Combination And Diversion
Structure:	Diaphragm
Manufacturing Craft:	Casting
Port Size:	3/4" - 8"
Connection:	Flanges
Test Standard:	Strength Test And Sealing Test And Client Requirement
Quality Warranty:	18 Months
Name:	Electric Control Valve

General Electric Control Valve Straight Travel Three Way Control Valve

Electric And Pneumatic Operated Straight Travel Three-Way Control Valve

Product introduction:
L202302 straight travel three-way combination / splitting control valve adopts double valvecore and valve seat guide structure. it regulates and controls the concentration and separationof several flow channels. Two channels enter and one channel exit is called three-way merge.One flow channel in, two flow channels out is called diversion. The standard closing /splittingcircuit is designed as an unbalanced two-seat trim structure. At the same time, the form ofbalanced internal parts can be used to effectively reduce the unbalanced force caused bythe medium pressure difference. Change the area of the throttling surface to control theadjustment or cut-off function of the equalized flow composed of the merging or splittingof any flow path. Special valve cage internals such as noise reduction and anti-cavitationcan be used according to the working conditions.

Product technical parameter:

Model number		L202302
Pressure nominal		PN16-PN64
Port size		DN20-DN300
Test pressure (strength) MPa		1.5 times of pressure nominal
Test pressure (Sealing) MPa		1.1 times of pressure nominal
Main parts and raw material	Body	WCB, WC6, WC9, A105
	Bonnet	WCB, WC6, WC9, A105
	Disc	F304, F316, F316L
	Seat	F304, F316, F316L
	Stem	F316, F316L
	Cage	CF8, CF8M
	Packing	PTFE, Flexible graphite
Body type		Straight through type
Bonnet type		Extension type, Internal part extension type
Working temperature		-196～570℃
Stem sealing type		Standard packing type and bellow seals type
Leakage rate		Class V, Class VI
Flow characteristics		Equal percentage and linear type
Adjusting rate		50:1
Connection		Flange, weldable type
Operation method		Pneumatic, electric, Electro-hydraulic actuator etc.

Product features:

1. The fluid of the three-way regulating valve is in a flow open state in the direction of action on the valve core, so it has good working stability.
2. The servo amplifier adopts deep dynamic negative feedback, which can improve the adjustment accuracy.
3. The thermal oil electric three-way regulating valve saves automation investment. Compared with single seat, double seat, or sleeve regulating valves, forming the same system can save one valve, simplify the system, and save investment.
4. Electric operators come in various forms and can be applied to 4-20mA. DC or 0-10mA. DC.
5. The electronic electric regulating valve can be directly controlled by the current signal to control the valve opening. No need for servo amplifier.
