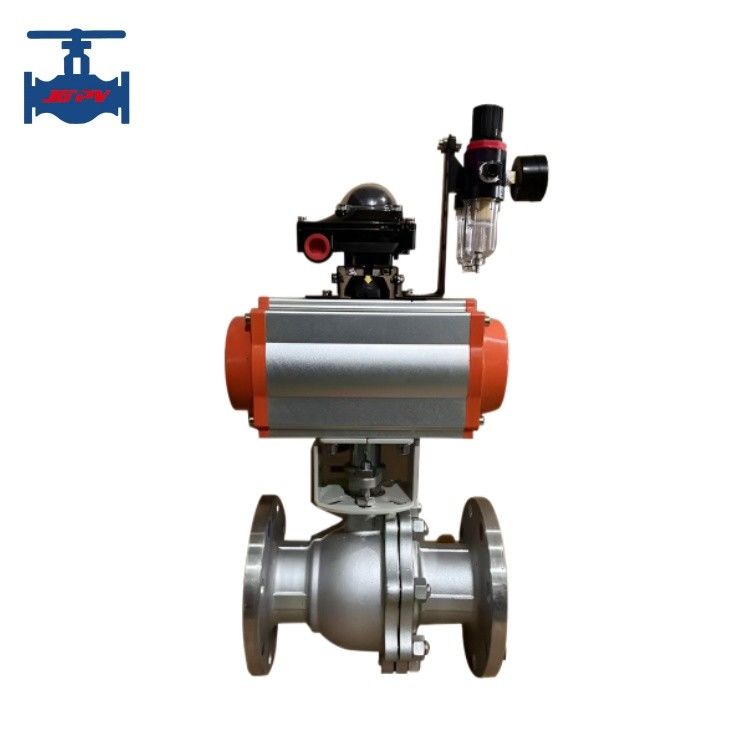

ANSI Pneumatic Actuator Driven Stainless Steel Flanged Ball Valve

Name: ANSI Pneumatic Actuator Driven Stainless Steel Flanged Ball Valve
Brand: Shanghai Jianggong Valve Manufacturing Co., Ltd.
SKU: Q641F-JGPV
Price: 2,064.90 USD
Availability: InStock

Product Details

Place of Origin: CHINA

Brand Name: JGPV

Model Number: Q641F-JGPV

Payment & Shipping Terms

Minimum Order Quantity: 1set

Price: USD129.9/Set to USD3999.9/Set

Packaging Details: Plywood box safety packing

Delivery Time: 14 days

Payment Terms: L/C, T/T, Western Union

Supply Ability: 1000pcs per month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                ANSI Pneumatic Actuator Valve, Pneumatic Actuator Valve Stainless Steel, CF8M Flanged Ball Valve


Name:	Pneumatic Valve	Standard Or Non-Standard:	Standard
Application:	General	Medium Type:	Water, Steam, Oil And Corrosive Mediums
Working Temperature:	Normal Temperature And High Temperature	Pressure Application:	Low Pressure And Medium And High Pressure
Power:	Pneumatic Driven	Body Material:	Cast Steel, Stainless Steel
Seal Type:	Soft Seal, Hard Seal	Quality Warranty:	18 Months
Test Standard:	Strength Test, Sealing Test And Other Client Needs

Name:	Pneumatic Valve
Standard Or Non-Standard:	Standard
Application:	General
Medium Type:	Water, Steam, Oil And Corrosive Mediums
Working Temperature:	Normal Temperature And High Temperature
Pressure Application:	Low Pressure And Medium And High Pressure
Power:	Pneumatic Driven
Body Material:	Cast Steel, Stainless Steel
Seal Type:	Soft Seal, Hard Seal
Quality Warranty:	18 Months
Test Standard:	Strength Test, Sealing Test And Other Client Needs

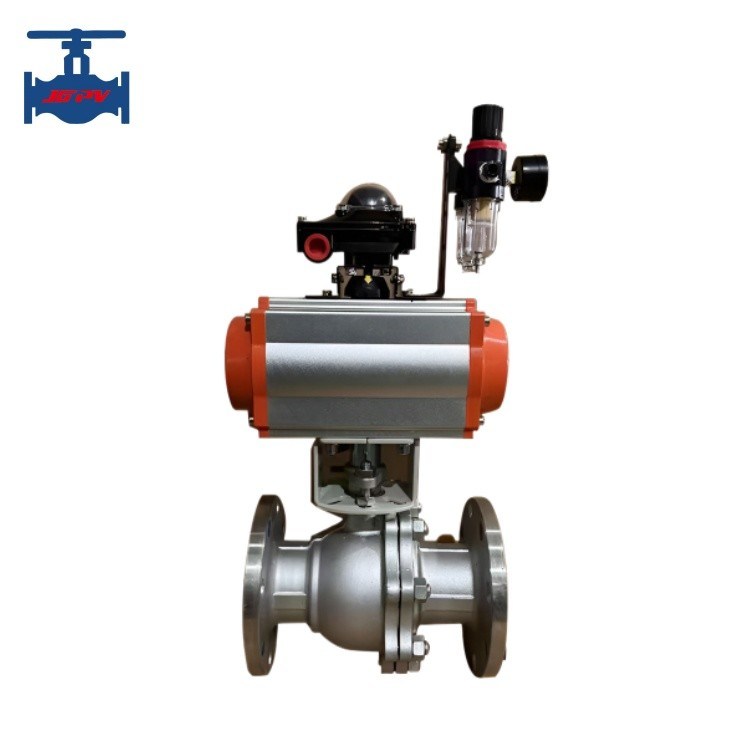

ANSI Pneumatic Actuator Driven Stainless Steel Flanged Ball Valve

ANSI Pneumatic Actuator Driven Stainless Steel CF8, CF8M Flanged Ball Valve

Product introduction:

Pneumatic ball valve is a device that can control valve opening and closing using air or other gases. Its function is to control the flow rate in the pipeline, that is, to control the on/off and flow velocity of the pipeline by rotating the valve ball. Therefore, pneumatic ball valves are widely used in pipeline systems in industries such as petroleum, chemical, metallurgy, and water treatment.

Pneumatic ball valves are mainly used to control the flow direction, flow rate, pressure, and temperature of fluids such as liquids, gases, and solid particles. Its advantages include fast switching, reliable sealing, strong circulation capacity, long service life, easy maintenance, and simple structure.

Product technical parameters:

Nominal Diameter DN (mm)		15~200
Nominal Pressure PN (MPa)		150LB, 300LB
Pneumatic actuator type		AT, GT double acting and single acting
Accessories		Limited switch, positioner, solenoid valve etc.
Control method		Normal close / normal open
Test Pressure (MPa)	Strength (water)	3.0
	Enclose (Water)	2.2
Main Components	Body	Stainless steel
	Valve ball	Stainless steel
	Seat	PTFE, PPL, Hard alloy
	Stem	Stainless steel
Working temperature		≤300℃
Medium suitable		Water, steam, oil and weak corrosive mediums
Connection		Flange connection

Product features:

1. Quick switch: By controlling the air source, it is possible to achieve fast switching and improve operational efficiency.
2. Reliable sealing: Ball valves use sealing rings for sealing, which have good sealing performance and can effectively prevent fluid leakage.
3. Strong flow capacity: Ball valves have high flow capacity, low resistance, and stable fluid flow performance when passing through them, which can meet high flow requirements.
4. Long lifespan: Pneumatic ball valves have a simple structure, few components, corrosion resistance, wear resistance, and long lifespan.
5. Easy maintenance: Pneumatic ball valves have the characteristics of being detachable and maintainable, making maintenance and material replacement convenient.
