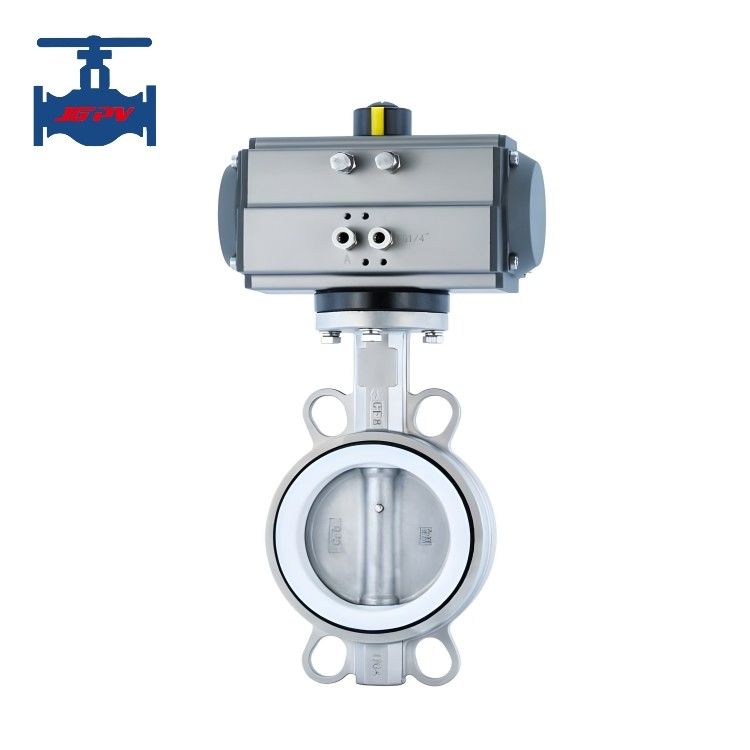

Stainless Steel Wafer Type Butterfly Valve With PTFE Lined And Pneumatic Actuator
Product introduction:
Concentric butterfly valve also named as center-line butterfly valve, it is with structure of same position of valve stem axis, disc center and body center, this type of butterfly valve with simple structure and convenient manufacturing craft, and its body, disc and seat can be changed to various type of raw material, and diversified driving methods make this type of butterfly widely used in different industries and to meet the different type of medium pipeline use.
Concentric butterfly, stainless steel wafer type center line butterfly valve with stainless steel disc and PTFE seat, PTFE lined unit, and matched with double acting / single acting pneumatic actuator make it perfectly suitable for automatic control system in industries such as food, environmental protection, light industry, petroleum, papermaking, chemical industry, teaching and research equipment and power etc fields.
Product technical paramters:
| Nominal Diameter DN (mm) |
40~600 |
| Nominal Pressure PN (MPa) |
1.0~1.6 |
| Test Pressure (MPa) |
Strength (water) |
1.5~2.4 |
| Enclose (Water) |
1.1~1.76 |
| Main Components |
Valve body |
CF8, CF8M, CF3, CF3M |
| Disc |
CF8, CF8M, CF3, CF3M |
| Seat |
PTFE |
| Axle |
2Cr13, 304, 316 |
| Working temperature |
≤150℃ |
| Medium suitable |
Water and oil |
| Connection |
Wafer type |
Product features:
1.Compact and portable, easy to remove and maintain, and can be installed at any position;
2. Straight line flow channel make great regulating performance;
3. Simple structure, small operating torque and fast opening by only rotating 90 degrees;
4. Internal leakage point is eliminated by connecting valve plate with valve rod without pin;
5.The butterfly body, disc, seat and stem can be with various raw material as the request.
7.The valve can be flange or the wafer.
8.The motivation can be the handle, pneumatic and electric actuators.
•
