CF8 Ball Valve Wafer Type
, Wafer Type Ball Valve WCB
, WCB Ball Valve Wafer Type

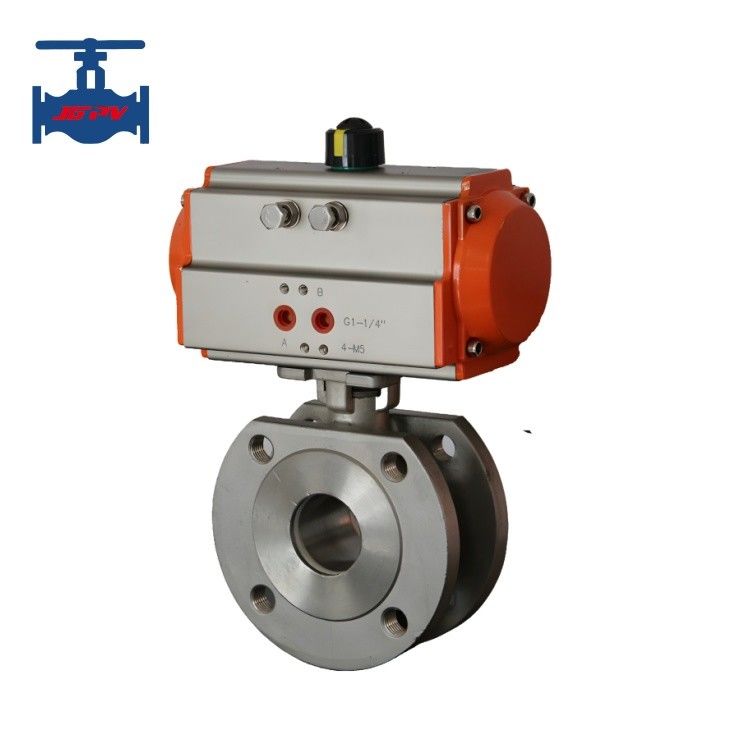

Pneumatic Actuator Driven WCB Ball Valve CF8 CF8M Wafer Type Ball Valve Ultra Thin
Product introductioin:
Italian type ultra thin ball valve is a new generation of ultra short flange pitch ball valve developed by introducing Italian technology, its ball core channel shapes are rectangular, V-shaped, and O-shaped. This series of products has the characteristics of compact structure, small volume, light weight, and easy installation. It can be widely used in fields such as petroleum, chemical industry, metallurgy, power plants, light industry, etc., and can automatically adjust or cut off control oil, water, gas, pulp or fibrous fluids.
The Italian type ultra thin type ball valve can be matched with pneumatic actuator and easily driven by compressed air, with single acting or double acting function, with low starting torque, excellent sensitivity and sensing speed to achieve automatic system use.
Product technical paratmeters:
| Diameter nominal DN(mm) |
15～200 |
| Pressure nominal PN(MPa) |
1.0～2.5 |
|
Pressure test
Ps (MPa)
|
Strength test (Water) |
1.5～3.75 |
| Sealing test (Water) |
1.1～2.75 |
| Medium applicable |
Water, steam,oil and weak corrosive mediums etc. |
| Connection way |
Wafer, flange |
Product features:
1. The pneumatic actuator driven method makes it fast response and precise control and improve production efficiency.
2. The pneumatic thin type ball valves are usually very sturdy and can work stably in various harsh environmental conditions. In addition, it can effectively prevent medium leakage due to its excellent sealing performance, to ensure the safety of operation.
3. Pneumatic thin type ball valve with simple structure, lower friction coefficient and wear resistance, the service life of the valve is also very long.
4. Pneumatic thin type ball lves can adapt to various fluids, including gas, liquid, slurry, etc. sealing material can be selected for different mediums application for further enhancing its adaptability.
5. The pneumatic thin type ball valve can be remotely controlled through a control system, which is very important for automated production lines. Valves can be easily opened and closed through preset programs or manual operations.
