Product Details
Place of Origin: CHINA
Brand Name: JGPV
Model Number: Z641H-JGPV
Payment & Shipping Terms
Minimum Order Quantity: 1set
Price: USD239.5/pc - USD14999/pc
Packaging Details: Plywood box safety packing
Delivery Time: 14 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 500pcs per month
Standard Or Non-standard: |
Standard |
Application: |
General |
Product Features: |
Industrial Valve Product |
Purpose: |
Pipeline Open And Close Control Automatically |
Medium Type: |
Water, Steam And Oil |
Working Temperature: |
Normal Temperature |
Pressure Application: |
Low Pressure, Medium Pressure And High Pressure |
Test Standard: |
Strength Test, Sealing Test And Other Client Needs |
Quality Warranty: |
18 Months |
Customized Support: |
OEM And ODM Service Available |
Name: |
Stainless Steel Gate Valve |
Standard Or Non-standard: |
Standard |
Application: |
General |
Product Features: |
Industrial Valve Product |
Purpose: |
Pipeline Open And Close Control Automatically |
Medium Type: |
Water, Steam And Oil |
Working Temperature: |
Normal Temperature |
Pressure Application: |
Low Pressure, Medium Pressure And High Pressure |
Test Standard: |
Strength Test, Sealing Test And Other Client Needs |
Quality Warranty: |
18 Months |
Customized Support: |
OEM And ODM Service Available |
Name: |
Stainless Steel Gate Valve |

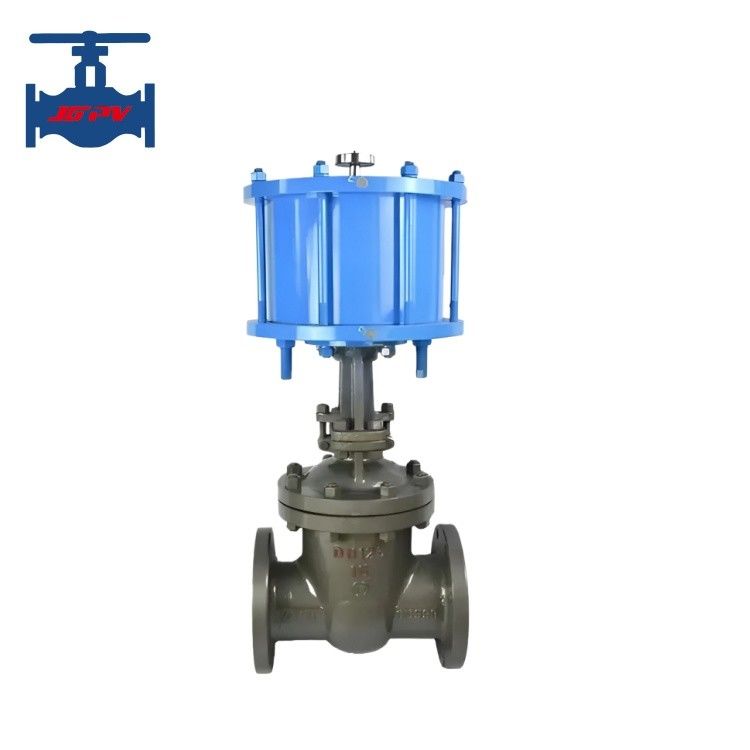

Pneumatic Cast Steel Stainless Steel Gate Valve For Water Steam Oil Pipeline Use
Product Introduction:
Pneumatic gate valve is a gate valve controlled by a pneumatic actuator to achieve the opening and closing of the valve. It can be divided into two parts: the upper part is a pneumatic actuator, and the lower part is a valve. The action force distance of pneumatic actuators is larger than that of valves, the opening and closing speed can be adjusted, the structure is simple, and it is easy to maintain. During the action process, due to the buffering characteristics of the gas itself, it is not easy to be damaged due to jamming, but it must have an air source, and its control system is also more complex than electric valves. Pneumatic gate valves have a sensitive response and are safe and reliable. Many factories with high control requirements specifically set up compressed air stations for pneumatic instrument control components.
Product Technical Parameters:
| Type Number: | Z641H-JGPV | |
| Nominal Pressure PN(MPa) | 1.0 - 10.0 | |
| Nominal Diameter DN(mm) | 15～600 | |
| Test pressure (MPa) | Strength (water) | 1.5 times of pressure nominal |
| Sealing (water) | 1.1 times of pressure nominal | |
| Raw material | WCB, CF8, CF8M, CF3, CF3M, | |
| Medium suitable: | Water, steam, oil and nitric acid etc corrosive medium | |
| Working temperature | ≤425℃ | |
| Connection type | Flange | |
| Operational method | Handwheel +pneumatic actuator | |
Product features:
1. Simple structure, small size, light weight.
2. Highly reliable, safe, long lifespan and convenient maintenance.
3. It can achieve remote control and centralized management operations with simple maintenance workload.
4. It can automatically maintain the open state during the fully open or fully closed process to achieve good adjustment effect and achieve remote control, and can avoid wrong manual operation.
5. Electromagnetic inverters with various special functions can be configured according to user needs to meet various customer requirements.
6. The use of compressed air as the power source to drive the piston transmission system ensures smooth operation, no vibration, low noise, and long service life of the product.
