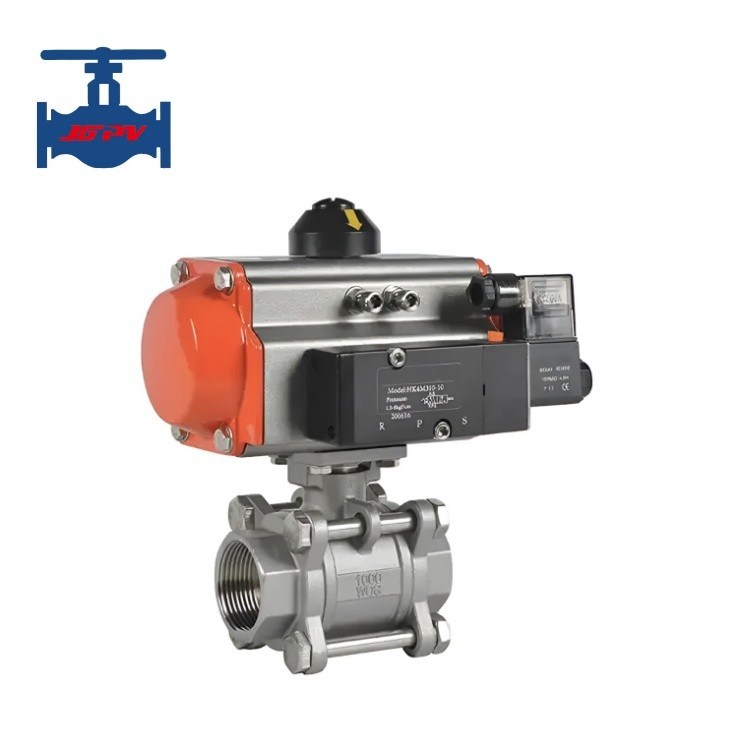

Stainless Steel 304 316 CF8 CF8M Pneumatic Actuator Driven Quick Close Valve 3PC Screw Type Ball Valve

Name: Stainless Steel 304 316 CF8 CF8M Pneumatic Actuator Driven Quick Close Valve 3PC Screw Type Ball Valve
Brand: Shanghai Jianggong Valve Manufacturing Co., Ltd.
SKU: PZ671F-JGPV
Price: 470.90 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: JGPV

Model Number: PZ671F-JGPV

Payment & Shipping Terms

Minimum Order Quantity: 1 Set

Price: USD42.9/Set - USD899.9/Set

Packaging Details: Plywood box safety packing

Delivery Time: One week

Payment Terms: L/C, T/T, Western Union

Supply Ability: 500 Set per month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                3PC Screw Type Ball Valve, Pneumatic Actuator Driven Quick Close Valve


Standard Or Non-standard:	Standard	Application:	General
Product Feature:	Industrial Valve	Structure:	3PC Female Threaded Ball Type
Pressure Nominal:	Low Pressure	Medium Type:	Water, Steam, Oil
Driven Methold:	Pneumatic Actuator	Connection:	Flanges
Test Standard:	Strength Test And Sealing Test And Client Requirement	Warranty:	18 Months
Name:	Pneumatic Valve

Standard Or Non-standard:	Standard
Application:	General
Product Feature:	Industrial Valve
Structure:	3PC Female Threaded Ball Type
Pressure Nominal:	Low Pressure
Medium Type:	Water, Steam, Oil
Driven Methold:	Pneumatic Actuator
Connection:	Flanges
Test Standard:	Strength Test And Sealing Test And Client Requirement
Warranty:	18 Months
Name:	Pneumatic Valve

Stainless Steel 304 316 CF8 CF8M Pneumatic Actuator Driven Quick Close Valve 3PC Screw Type Ball Valve

Pneumatic Actuator Driven Stainless Stell CF8 CF8M 3PC Screw Type Ball Valve

Product introductioin:

The three piece ball valve and gate valve belong to the same type of valve, with the difference being that their closing part is a sphere, which rotates around the centerline of the valve body to achieve opening and closing. Ball valves are mainly used in pipelines to cut off, distribute, and change the flow direction of the medium. Three piece ball valve is a widely used new type of valve.

Product technical paratmeters:

Diameter nominal DN(mm)		15～50
Pressure nominal PN(MPa)		1.0～2.5
Pressure test Ps (MPa)	Strength test (Water)	1.5～3.75
	Sealing test (Water)	1.1～2.75
Medium applicable		Water, steam,oil and weak corrosive mediums etc.
Connection way		NPT, BSP, weldable

Product features:

1. The pneumatic actuator driven method makes it fast response and precise control and improve production efficiency.

2. The pneumatic thin type ball valves are usually very sturdy and can work stably in various harsh environmental conditions. In addition, it can effectively prevent medium leakage due to its excellent sealing performance, to ensure the safety of operation.

3. Pneumatic thin type ball valve with simple structure, lower friction coefficient and wear resistance, the service life of the valve is also very long.
