Full Bore Pressure Relief Safety Valve

Name: Full Bore Pressure Relief Safety Valve
Brand: Shanghai Jianggong Valve Manufacturing Co., Ltd.
SKU: A42H-16C
Price: 2,169.90 USD
Availability: InStock

Product Details

Place of Origin: CHINA

Brand Name: JGPV

Model Number: A42H-16C

Payment & Shipping Terms

Minimum Order Quantity: 1set

Price: USD49.9/pc - USD4289.9

Packaging Details: Plywood box safety packing

Delivery Time: 14 days

Payment Terms: L/C, T/T, Western Union

Supply Ability: 1000pcs per month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                Relief Safety Valve, Close Type Safety Valve


Standard Or Non-standard:	Standard	Application:	General
Product Feasture:	Industrial Valve	Purpose:	Overpressure Protection
Medium Type:	Air, Water, Steam, Oil And Petroleum Gas Etc.	Working Temperature:	Up To 300 Degrees Celsius
Pressure Nominal:	Low, Medium And High Temperature	Manufacturing Craft:	Casting
Port Size:	DN15-DN300	Quality Warranty:	18 Months
Name:	Safety Valve

Standard Or Non-standard:	Standard
Application:	General
Product Feasture:	Industrial Valve
Purpose:	Overpressure Protection
Medium Type:	Air, Water, Steam, Oil And Petroleum Gas Etc.
Working Temperature:	Up To 300 Degrees Celsius
Pressure Nominal:	Low, Medium And High Temperature
Manufacturing Craft:	Casting
Port Size:	DN15-DN300
Quality Warranty:	18 Months
Name:	Safety Valve

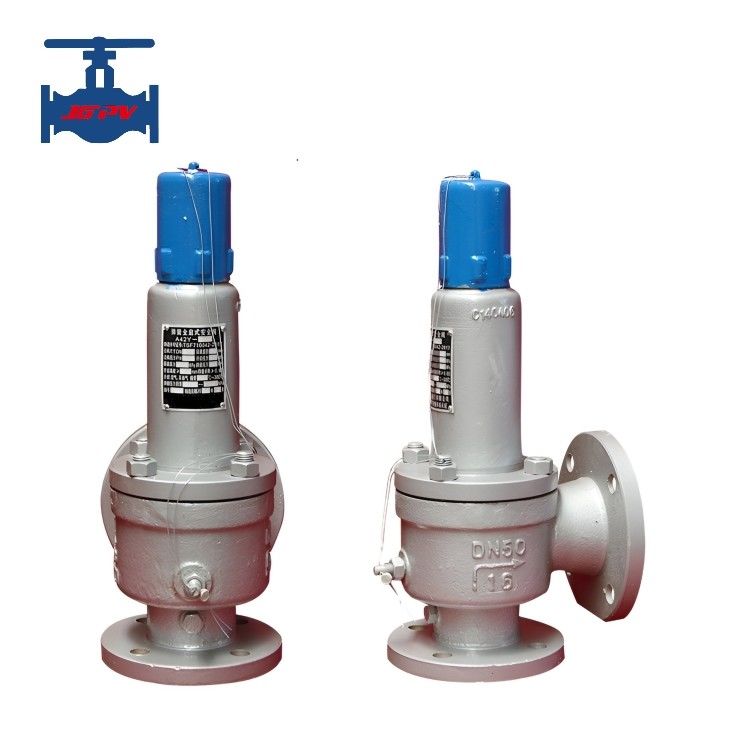

Full Bore Pressure Relief Safety Valve

Carbon Steel Spring Load Close Type Full Bore Pressure Relief Safety Valve

Product introduction:

Safety valve as the best device for extra-pressure protection, will automatically open and fully discharge to protect the equipment pressure from going on rise when medium’s pressure rises over the allowed valve and will automatically close when the pressure lowers to setting valve.

This safety valve conforms with GB/T12243-2005 on its design, and flange connection dimensions of company with JB/T79-94 manufacture and acceptance etc. Technical standards.

The bonnet of the sealed safety valve is enclosed in order to protect dust and other things from getting in and protect toxic and combustible medium from over-flow.and height of opening for a low lift safety valve 1/20-1/40 time the flow diameter.

Product technical parameters:

Nominal diameter DN(mm)		DN15-DN300
Nominal pressure PN(MPa)		1.0-32.0
Test pressure (MPa)	Strength test (Water)	1.5 times of pressure nominal
Test pressure (MPa)	Set pressure test (Air)	0.9 times of pressure nominal
Main component	Body	WCB, CF8, CF8M, CF3, CF3M
	Bonnet	WCB, CF8, CF8M, CF3, CF3M
	Disc	WCB, CF8, CF8M, CF3, CF3M
	Spring	50CrVA
	Stem	WCB, CF8, CF8M, CF3, CF3M
Applicable medium		Water, air, petroleum gas and weak corrosive medium
Working temperature		≤300℃
Connection method		Flange connection

Product features:

1. This type of safety valve designed for the equipment and pipeline of petroleum gas, air water and corrosive medium what the working temperature are less than 200℃.

2. Economic design with large displacement.

3. Disc is equipped with a backflush disc component, the plane structure of the disc and seat is easy to repair and rework.

4. Small setting pressure deviation, up to ±3%.

5. High quality spring steel, ensure the life and stability of the spring.
