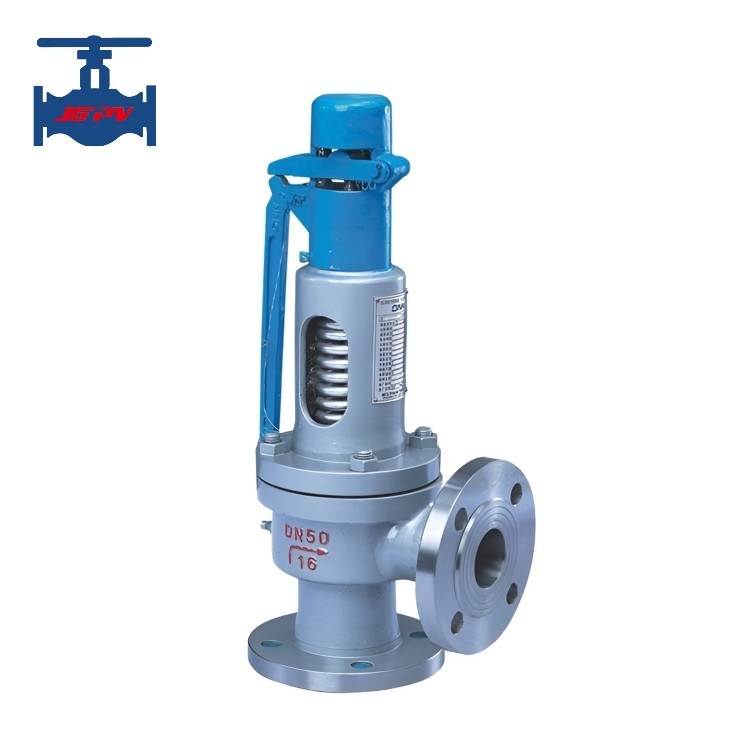

Cast Steel and Stainless Steel Automatic Pilot Operated Safety Valve with DN15-DN300 Port Size for Up to 300°C Working Temperature

Name: Cast Steel and Stainless Steel Automatic Pilot Operated Safety Valve with DN15-DN300 Port Size for Up to 300°C Working Temperature
Brand: Shanghai Jianggong Valve Manufacturing Co., Ltd.
SKU: A42H-16C
Price: 2,169.90 USD
Availability: InStock

Product Details

Place of Origin: CHINA

Brand Name: JGPV

Model Number: A42H-16C

Payment & Shipping Terms

Minimum Order Quantity: 1set

Price: USD49.9/pc - USD4289.9

Packaging Details: Plywood box safety packing

Delivery Time: 14 days

Payment Terms: L/C,T/T,Western Union

Supply Ability: 1000pcs per month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                Cast steel automatic safety valve, Stainless steel pilot operated valve, DN15-DN300 safety valve 300°C


Standard Or Non-standard:	Standard	Application:	General
Product Feasture:	Industrial Valve	Purpose:	Overpressure Protection
Medium Type:	Air, Water, Steam, Oil And Petroleum Gas Etc.	Working Temperature:	Up To 300 Degrees Celsius
Pressure Nominal:	Low, Medium And High Temperature	Manufacturing Craft:	Casting
Port Size:	DN15-DN300	Quality Warranty:	18 Months
Name:	Safety Valve

Standard Or Non-standard:	Standard
Application:	General
Product Feasture:	Industrial Valve
Purpose:	Overpressure Protection
Medium Type:	Air, Water, Steam, Oil And Petroleum Gas Etc.
Working Temperature:	Up To 300 Degrees Celsius
Pressure Nominal:	Low, Medium And High Temperature
Manufacturing Craft:	Casting
Port Size:	DN15-DN300
Quality Warranty:	18 Months
Name:	Safety Valve

Cast Steel and Stainless Steel Automatic Pilot Operated Safety Valve with DN15-DN300 Port Size for Up to 300°C Working Temperature

Automatic Pilot Operated Safety Valve

Product Overview

Cast Steel And Stainless Steel Automatic Pilot Operated Safety Valve

Pilot operated safety valve is a type of non direct load safety valve composed of a main valve and a pilot valve (also known as a "secondary valve"). The main valve is driven by the medium discharged from the pilot valve. Due to the pulse form of pressure in the system, it is also known as a "pulse safety valve".

This automatic valve category is mainly used on boilers, pressure vessels, and pipelines to control pressure not exceeding specified values, providing important protection for personal safety and equipment operation.

Technical Specifications

Parameter	Specification
Nominal diameter DN(mm)	DN15-DN300
Nominal pressure PN(MPa)	1.0-32.0
Strength test (Water)	1.5 times of pressure nominal
Set pressure test (Air)	0.9 times of pressure nominal
Main components - Body	WCB, CF8, CF8M, CF3, CF3M
Main components - Bonnet	WCB, CF8, CF8M, CF3, CF3M
Main components - Disc	WCB, CF8, CF8M, CF3, CF3M
Main components - Spring	50CrVA
Main components - Stem	WCB, CF8, CF8M, CF3, CF3M
Applicable medium	Water, air, petroleum gas and weak corrosive medium
Working temperature	≤300℃
Connection method	Flange connection

Product Features

Ideal for high-pressure and large-diameter applications
Excellent sealing performance
Minimal back pressure influence on operation
Available in micro opening and full opening configurations

Note: While offering superior sealing, pilot operated safety valves have more complex structures and may not respond as quickly as direct acting safety valves.
