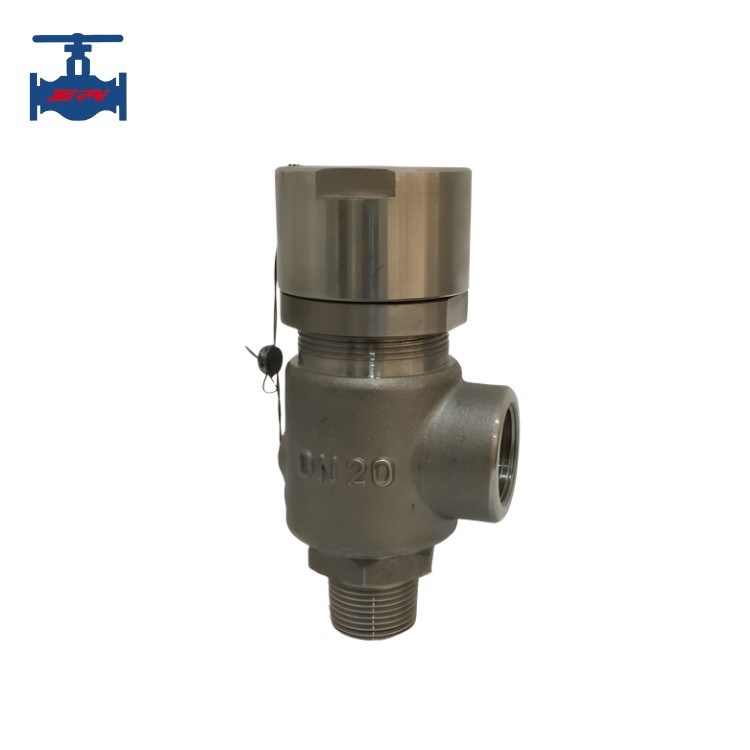

Stainless Steel Internal and External Thread Safety Valve with 18 Months Warranty and ISO14001 Certification

Product Details

Place of Origin: China

Brand Name: JGPV

Payment & Shipping Terms

Minimum Order Quantity: 1set

Packaging Details: Plywood box safety packing

Delivery Time: 14 days

Payment Terms: L/C,T/T,Western Union

Supply Ability: 500 Set per month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                18 Months Warranty Safety Valve, Internal and External Thread Safety Valve, ISO14001 Certified Safety Valve


Application::	General	Certificate::	ISO9001, ISO14001
Medium Type::	Water, Steam And Oil Etc.	Connection::	Threaded / Flanged / Welded
Standard Or Non-Standard::	Standard	Flow Way::	Two Way
Actuation::	Manual, Electric, Pneumatic,Automatic	Sealing Performance::	Sealing
Working Temperature::	Normal Temperature And High Temperature	Pressure Application::	Normal Pressure
Quality Warranty::	18 Months

Application::	General
Certificate::	ISO9001, ISO14001
Medium Type::	Water, Steam And Oil Etc.
Connection::	Threaded / Flanged / Welded
Standard Or Non-Standard::	Standard
Flow Way::	Two Way
Actuation::	Manual, Electric, Pneumatic,Automatic
Sealing Performance::	Sealing
Working Temperature::	Normal Temperature And High Temperature
Pressure Application::	Normal Pressure
Quality Warranty::	18 Months

Stainless Steel Internal and External Thread Safety Valve with 18 Months Warranty and ISO14001 Certification

Stainless steel internal and external thread safety valve

Product Description

Stainless steel internal and external thread safety valve

Safety valve is a kind of automatic pressure relief device for pressure equipment, container cargo line. When the pressure in the protected system increases beyond the allowable value, the valve automatically opens, discharge part of the excess medium, to prevent the system pressure continues to rise, when the system pressure decreases to a specified value, the valve can automatically close, so as to ensure the normal operation of the system.

Technical Parameters

Parameter	Value
Nominal diameter DN(mm)	DN25
Nominal pressure PN(MPa)	1.6
Test pressure (MPa)	Strength test (Water): 2.4 Set pressure test (Air): 0.9
Main component	Body: 1Cr18Ni9Ti Bonnet: 1Cr18Ni9Ti Disc: 1Cr18Ni9Ti Spring: 50CrVA Stem: 1Cr18Ni9Ti
Applicable medium	Water, air, petroleum gas and weak corrosive medium
Working temperature	≤300℃
Connection method	Flange connection

Product Features

This type of safety valve designed for the equipment and pipeline of petroleum gas, air water and corrosive medium what the working temperature are less than 200℃.
Economic design with large displacement.
Disc is equipped with a backflush disc component, the plane structure of the disc and seat is easy to repair and rework.
Small setting pressure deviation, up to ±3%.
High quality spring steel, ensure the life and stability of the spring.
