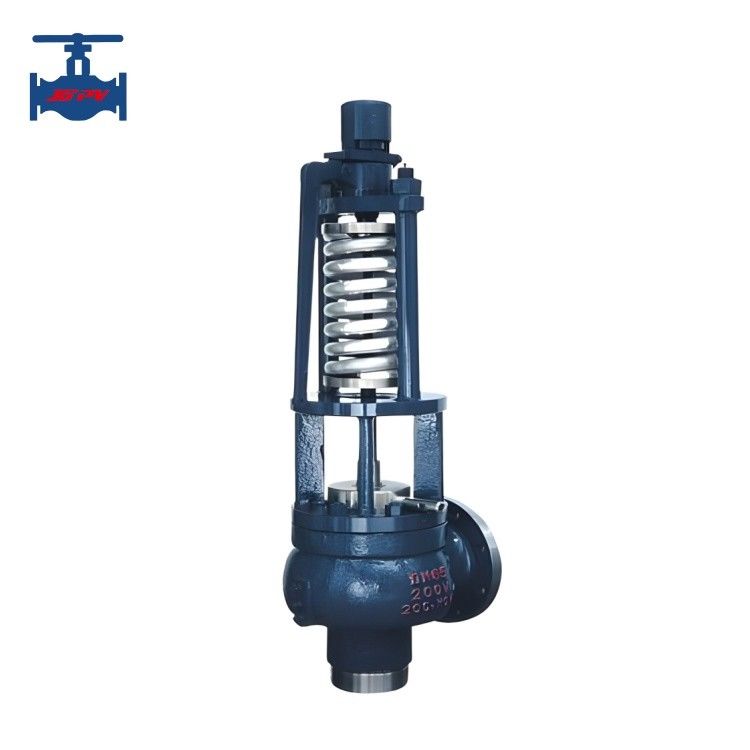

Full Capacity Welded Safety Valve For High Pressure / High Temperature Use

Name: Full Capacity Welded Safety Valve For High Pressure / High Temperature Use
Brand: Shanghai Jianggong Valve Manufacturing Co., Ltd.
SKU: A68Y-200
Price: 74.90 USD
Availability: InStock

Product Details

Place of Origin: CHINA

Brand Name: JGPV

Model Number: A68Y-200

Payment & Shipping Terms

Minimum Order Quantity: 1set

Price: USD49.9/pc - USD99.9

Packaging Details: Plywood box safety packing

Delivery Time: 14 days

Payment Terms: L/C, T/T, Western Union

Supply Ability: 1000pcs per month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                Welded Safety Valve High Pressure, Full Capacity Safety Valve, JGPV High Pressure Safety Valve


Name:	Safety Valve	Standard Or Non-standard:	Standard
Application:	General	Product Feasture:	Industrial Safety Valve
Purpose:	Overpressure Protection	Medium Type:	Water, Air, Steam And Corrosive Mediums
Working Temperature:	Less Than 200 Degrees Celsius	Pressure Nominal:	Low, Medium And High Temperature
Manufacturing Craft:	Casting	Port Size:	DN15-DN80
Quality Warranty:	18 Months

Name:	Safety Valve
Standard Or Non-standard:	Standard
Application:	General
Product Feasture:	Industrial Safety Valve
Purpose:	Overpressure Protection
Medium Type:	Water, Air, Steam And Corrosive Mediums
Working Temperature:	Less Than 200 Degrees Celsius
Pressure Nominal:	Low, Medium And High Temperature
Manufacturing Craft:	Casting
Port Size:	DN15-DN80
Quality Warranty:	18 Months

Full Capacity Welded Safety Valve For High Pressure / High Temperature Use

Full Capacity Welded Safety Valve For High Pressure And High Temperature Use

Product introduction:

Full capacity safety valve is used on steam medium equipment and pipelines in large thermal power plants as an overpressure protection device. This valve has the characteristics of high discharge coefficient, accurate opening pressure, small opening and closing pressure difference, good sealing, and easy adjustment. The full capacity spring safety valve is one of the leading products developed by our company. It can be used on the drum, superheater header, reheater, and pressure vessel of 220t/h to 410t/h boilers matched with 50000 KW and 100000 KW units, to prevent pressure increase beyond the allowable value and ensure safe operation of the unit. It has been widely used by users so far.

Product technical parameters:

Model	PN	Spring setting pressure	Working temperature	Medium application
A68Y-200	200	≤12.5MPa	≤425℃	Steam
A68Y-P54/100V	P54/100V	≤11.8MPa	≤540℃	Steam

Main part and raw material
Model	Body and bonnet	Seat and disc	Stem and guiding sleeve	Sealing	Spring
A68Y-200	WCB	Chromium stainless steel	Chromium stainless steel	Chromium stainless steel overlay welding of hard alloy	High quality chromium vanadium steel
A68Y-P54/100V	Chromium molybdenum vanadium steel	Chromium nickel titanium stainless steel	Chromium nickel titanium stainless steel	Chromium nickel titanium stainless steel overlay welding of hard alloy	High quality chromium vanadium steel

Product features:

1. Nozzle-shaped valve seat: Designed using the Lafarre nozzle principle, the steam flow rate at the outlet of the valve seat is supersonic, resulting in a large emission coefficient. The sealing surface of the valve seat is plasma sprayed with cobalt based hard alloy, which is wear-resistant, corrosion-resistant, and has a long service life.
2. The valve disc adopts a thermal stress compensation structure, which is divided into two parts: the valve disc and the hot valve disc. The purpose is to fully utilize the thermal deformation of the valve disc to achieve sealing. The hot valve disc is made into a tongue shaped structure to use its small elastic effect to prevent leakage.
3. Spring: The spring is a key component that determines the performance of a safety valve. Different springs are designed for different set pressures and opening and closing pressure differentials.
4. The valve stem head and the valve disc gasket are welded with cobalt based hard alloy, which has high hardness, wear resistance, and long service life.
