Spring-Loaded Safety Valve ISO9001 Certified for Water Steam Oil

Product Details

Place of Origin: China

Brand Name: JGPV

Payment & Shipping Terms

Minimum Order Quantity: 1set

Packaging Details: Plywood box safety packing

Delivery Time: 14 days

Payment Terms: L/C,T/T,Western Union

Supply Ability: 500 Set per month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                ISO9001 certified safety valve, spring-loaded steam safety valve, safety valve for water oil


Application::	General	Certificate::	ISO9001, ISO14001
Medium Type::	Water, Steam And Oil Etc.	Connection::	Threaded / Flanged / Welded
Standard Or Non-Standard::	Standard	Flow Way::	Two Way
Actuation::	Manual, Electric, Pneumatic,Automatic	Sealing Performance::	Sealing
Working Temperature::	Normal Temperature And High Temperature	Pressure Application::	Normal Pressure
Quality Warranty::	18 Months

Application::	General
Certificate::	ISO9001, ISO14001
Medium Type::	Water, Steam And Oil Etc.
Connection::	Threaded / Flanged / Welded
Standard Or Non-Standard::	Standard
Flow Way::	Two Way
Actuation::	Manual, Electric, Pneumatic,Automatic
Sealing Performance::	Sealing
Working Temperature::	Normal Temperature And High Temperature
Pressure Application::	Normal Pressure
Quality Warranty::	18 Months

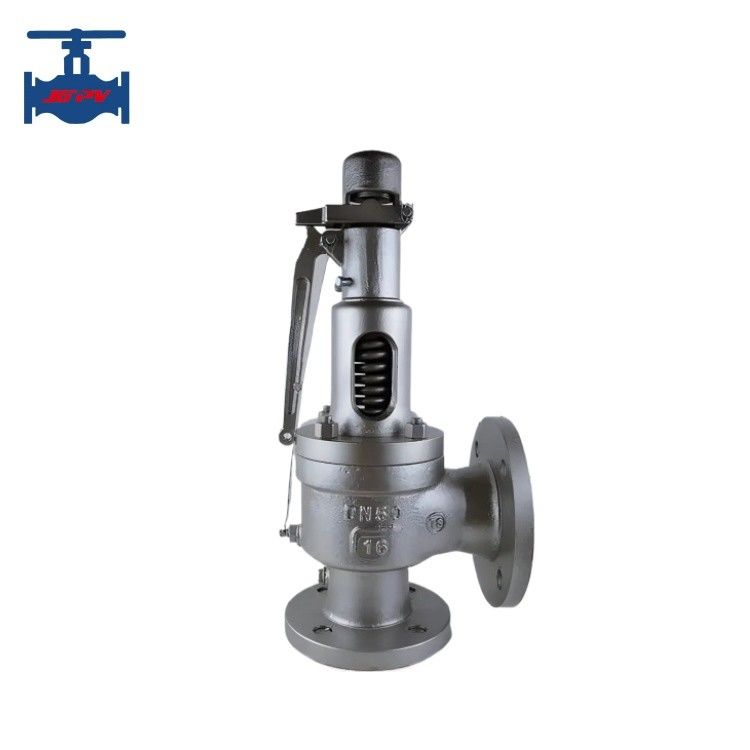

Spring-Loaded Safety Valve ISO9001 Certified for Water Steam Oil

Spring-loaded Safety Valve

Product Overview

Spring-loaded safety valve provides essential over-pressure protection by automatically opening to discharge excess pressure and closing when pressure returns to safe levels. Compliant with GB/T12243-2005 design standards and JB/T79-94 flange connection specifications.

Technical Specifications

Parameter	Value
Nominal diameter DN(mm)	25
Nominal pressure PN(MPa)	1.6
Test pressure (MPa)	Strength test (Water): 2.4 Set pressure test (Air): 0.9
Main components	Body/Bonnet/Disc/Stem: 1Cr18Ni9Ti Spring: 50CrVA
Applicable medium	Water, air, petroleum gas, weak corrosive medium
Working temperature	≤300℃
Connection method	Flange connection

Key Features

Designed for petroleum gas, air, water and corrosive media (≤200℃)
Economical design with large displacement capacity
Backflush disc component for easy maintenance and repair
Precise pressure setting (±3% deviation)
High-quality spring steel ensures durability and stability
Sealed bonnet prevents contamination and hazardous leaks

Product Attributes

Attribute	Value
Application	General
Certification	ISO9001, ISO14001
Medium Type	Water, steam, oil, etc.
Connection	Threaded / Flanged / Welded
Standard	Standard
Flow way	Two way
Actuation	Manual, Electric, Pneumatic, Automatic
Sealing Performance	Sealing
Working Temperature	Normal Temperature And High Temperature
Pressure Application	Normal Pressure
Quality Warranty	18 Months
