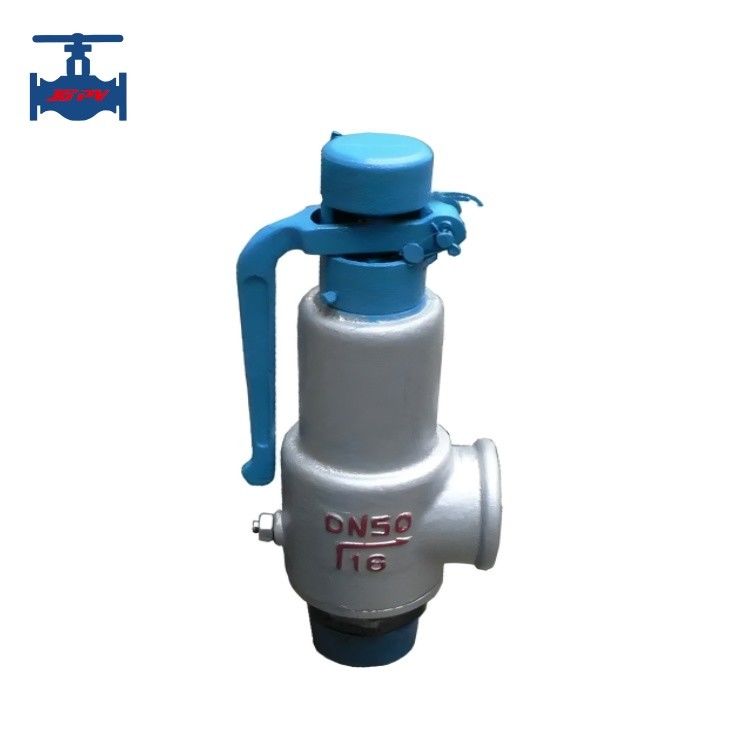

Spring Loaded Male Threaded Safety Valve WCB CF8 CF8M With Level Handle Operation

Product Details

Place of Origin: CHINA

Brand Name: JGPV

Model Number: A27H-16C

Payment & Shipping Terms

Minimum Order Quantity: 1set

Price: USD49.9/pc - USD99.9

Packaging Details: Plywood box safety packing

Delivery Time: 14 days

Payment Terms: L/C, T/T, Western Union

Supply Ability: 1000pcs per month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                Threaded Safety Valve WCB, Spring Loaded Safety Valve CF8


Standard Or Non-standard:	Standard	Application:	General
Product Feasture:	Industrial Safety Valve	Purpose:	Overpressure Protection
Medium Type:	Water, Air, Steam And Corrosive Mediums	Working Temperature:	Less Than 200 Degrees Celsius
Pressure Nominal:	Low, Medium And High Temperature	Manufacturing Craft:	Casting
Port Size:	DN15-DN80	Quality Warranty:	18 Months
Name:	Safety Valve

Standard Or Non-standard:	Standard
Application:	General
Product Feasture:	Industrial Safety Valve
Purpose:	Overpressure Protection
Medium Type:	Water, Air, Steam And Corrosive Mediums
Working Temperature:	Less Than 200 Degrees Celsius
Pressure Nominal:	Low, Medium And High Temperature
Manufacturing Craft:	Casting
Port Size:	DN15-DN80
Quality Warranty:	18 Months
Name:	Safety Valve

Spring Loaded Male Threaded Safety Valve WCB CF8 CF8M With Level Handle Operation

WCB CF8 CF8M Spring Loaded Male Threaded Safety Valve With Level Handle Operation

Product introduction:

A27H series male threaded spring loaded low lift type safety valve with level handle are used for the equipment and pipeline of the water, air steam etcc mediums what the working temperature are less than 200 degrees Celsius; A27Y type are used for the equipment and pipeline with corrode gas and liquid medium what the working temperature less than 200 degrees Celsius, both of them take for extrapressure protection devices.

Product technical parameters:

Nominal diameter DN(mm)		DN15-DN80
Nominal pressure PN(MPa)		1.0-32.0
Test pressure (MPa)	Strength test (Water)	1.5 times of pressure nominal
Test pressure (MPa)	Set pressure test (Air)	0.9 times of pressure nominal
Main component	Body	WCB, CF8, CF8M, BRASS
	Bonnet	WCB, CF8, CF8M, BRASS
	Disc	WCB, CF8, CF8M, BRASS
	Spring	50CrVA
	Stem	WCB, CF8, CF8M, BRASS
Applicable medium		Water, air, steam and weak corrosive medium
Working temperature		≤200℃
Connection method		Screw connection

Product features:

1. This type of safety valve designed for the equipment and pipeline of petroleum gas, air water and corrosive medium what the working temperature are less than 200℃.

2. Economic design with large displacement.

3. Disc is equipped with a backflush disc component, the plane structure of the disc and seat is easy to repair and rework.

4. Small setting pressure deviation, up to ±3%.

5. High quality spring steel, ensure the life and stability of the spring.
