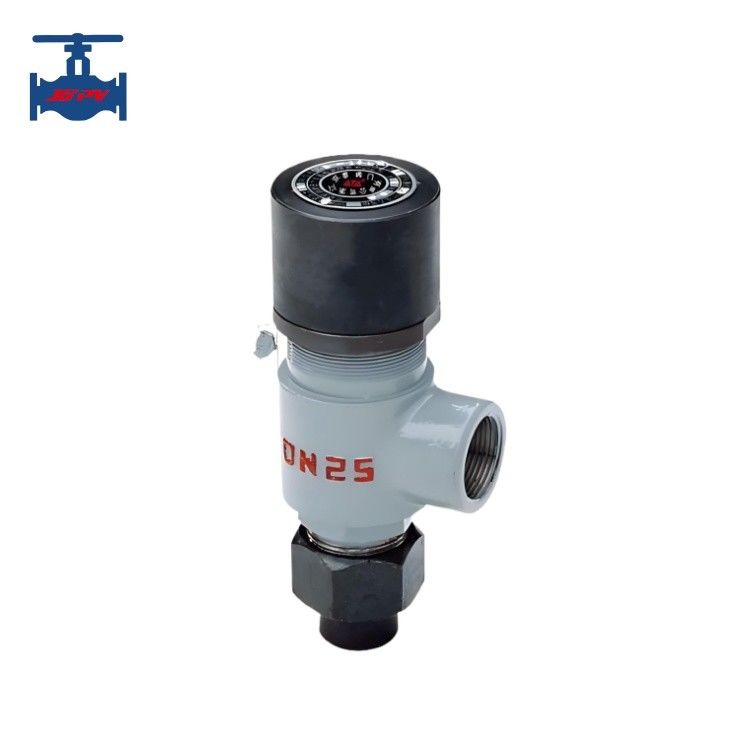

Spring Loaded Low Lift Male Threaded Safety Valve Carbon Steel Stainless Steel

Name: Spring Loaded Low Lift Male Threaded Safety Valve Carbon Steel Stainless Steel
Brand: Shanghai Jianggong Valve Manufacturing Co., Ltd.
SKU: A21H-16C
Price: 66.90 USD
Availability: InStock

Product Details

Place of Origin: CHINA

Brand Name: JGPV

Model Number: A21H-16C

Payment & Shipping Terms

Minimum Order Quantity: 1set

Price: USD43.9/pc - USD89.9

Packaging Details: Plywood box safety packing

Delivery Time: 14 days

Payment Terms: L/C, T/T, Western Union

Supply Ability: 1000pcs per month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                Threaded Safety Valve Stainless Steel, Spring Loaded Safety Valve, Threaded Safety Valve SS


Standard Or Non-standard:	Standard	Application:	General
Product Feasture:	Industrial Valve	Purpose:	Overpressure Protection
Medium Type:	Air, Ammonia, Petroleum Gas Etc.	Working Temperature:	Up To 200 Degrees Celsius
Pressure Nominal:	Low, Medium And High Temperature	Manufacturing Craft:	Casting
Port Size:	DN15-DN50	Quality Warranty:	18 Months
Name:	Safety Valve

Standard Or Non-standard:	Standard
Application:	General
Product Feasture:	Industrial Valve
Purpose:	Overpressure Protection
Medium Type:	Air, Ammonia, Petroleum Gas Etc.
Working Temperature:	Up To 200 Degrees Celsius
Pressure Nominal:	Low, Medium And High Temperature
Manufacturing Craft:	Casting
Port Size:	DN15-DN50
Quality Warranty:	18 Months
Name:	Safety Valve

Spring Loaded Low Lift Male Threaded Safety Valve Carbon Steel Stainless Steel

Carbon Steel Stainless Steel Spring Loaded Low Lift Male Threaded Safety Valve

Product introduction:

Carbon steel male threaded spring loaded low lift type safety valve are used for the equipment and pipeline of the air, ammonia, petroleum gas, etc medium what the working temperature are less than 200 degrees Celsius; Stainless steel raw material unit are used for the equipment and pipeline of the quality with corrode gas and liquid medium what the working temperature less than 200 degrees Celsius, both of them take for extrapressure protection devices.

Product technical parameters:

Nominal diameter DN(mm)		DN15-DN50
Nominal pressure PN(MPa)		1.0-32.0
Test pressure (MPa)	Strength test (Water)	1.5 times of pressure nominal
Test pressure (MPa)	Set pressure test (Air)	0.9 times of pressure nominal
Main component	Body	WCB, CF8
	Bonnet	WCB, CF8
	Disc	WCB, CF8
	Spring	50CrVA
	Stem	WCB, CF8
Applicable medium		Water, air, petroleum gas and weak corrosive medium
Working temperature		≤200℃
Connection method		Screw connection

Product features:

1. This type of safety valve designed for the equipment and pipeline of petroleum gas, air water and corrosive medium what the working temperature are less than 200℃.

2. Economic design with large displacement.

3. Disc is equipped with a backflush disc component, the plane structure of the disc and seat is easy to repair and rework.

4. Small setting pressure deviation, up to ±3%.

5. High quality spring steel, ensure the life and stability of the spring.
