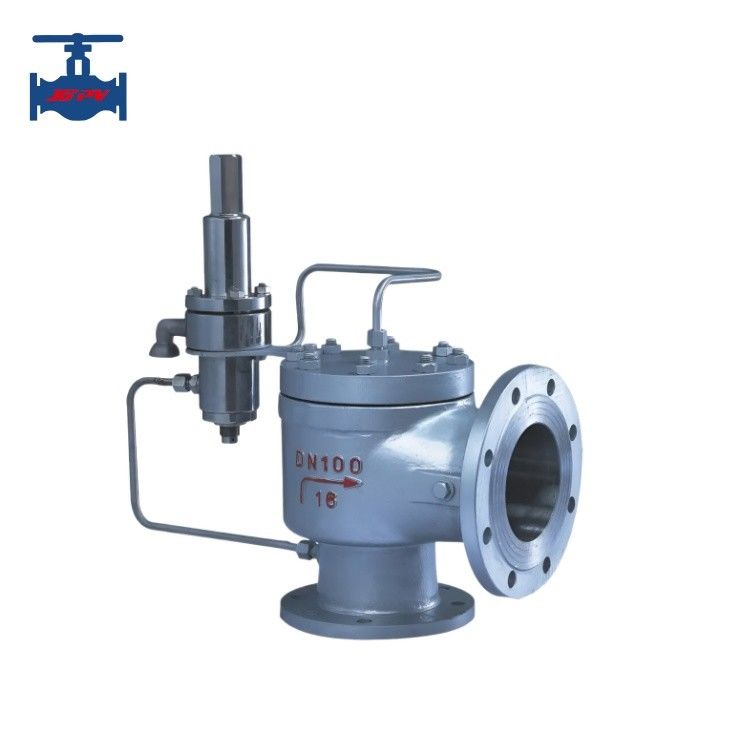

Automatic Pilot Operated Safety Valve

Name: Automatic Pilot Operated Safety Valve
Brand: Shanghai Jianggong Valve Manufacturing Co., Ltd.
SKU: A42H-16C
Price: 2,169.90 USD
Availability: InStock

Product Details

Place of Origin: CHINA

Brand Name: JGPV

Model Number: A42H-16C

Payment & Shipping Terms

Minimum Order Quantity: 1set

Price: USD49.9/pc - USD4289.9

Packaging Details: Plywood box safety packing

Delivery Time: 14 days

Payment Terms: L/C, T/T, Western Union

Supply Ability: 1000pcs per month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                Automatic Safety Valve, Pilot Operated Safety Valve


Standard Or Non-standard:	Standard	Application:	General
Product Feasture:	Industrial Valve	Purpose:	Overpressure Protection
Medium Type:	Air, Water, Steam, Oil And Petroleum Gas Etc.	Working Temperature:	Up To 300 Degrees Celsius
Pressure Nominal:	Low, Medium And High Temperature	Manufacturing Craft:	Casting
Port Size:	DN15-DN300	Quality Warranty:	18 Months
Name:	Safety Valve

Standard Or Non-standard:	Standard
Application:	General
Product Feasture:	Industrial Valve
Purpose:	Overpressure Protection
Medium Type:	Air, Water, Steam, Oil And Petroleum Gas Etc.
Working Temperature:	Up To 300 Degrees Celsius
Pressure Nominal:	Low, Medium And High Temperature
Manufacturing Craft:	Casting
Port Size:	DN15-DN300
Quality Warranty:	18 Months
Name:	Safety Valve

Automatic Pilot Operated Safety Valve

Cast Steel And Stainless Steel Automatic Pilot Operated Safety Valve

Product introduction:

Pilot operated safety valve is a type of non direct load safety valve. Composed of a main valve and a pilot valve (also known as a "secondary valve"), the main valve is driven by the medium discharged from the pilot valve. Due to the pulse form of pressure in the system, it is also known as a "pulse safety valve". From a standalone perspective, the pilot valve itself is also a direct load safety valve. When the medium pressure reaches the opening pressure of the pilot valve, the pilot valve opens first, and the discharged medium enters the main valve through the bypass pipe.

Pilot operated safety valve is a type of safety valve that relies on the discharge of medium from the pilot valve to drive or control the main valve. It belongs to the automatic valve category and is mainly used on boilers, pressure vessels, and pipelines. It controls the pressure to not exceed the specified value and plays an important protective role in personal safety and equipment operation. According to the opening height of the safety valve disc, it can be divided into micro opening safety valves and full opening safety valves.

Product technical parameters:

Nominal diameter DN(mm)		DN15-DN300
Nominal pressure PN(MPa)		1.0-32.0
Test pressure (MPa)	Strength test (Water)	1.5 times of pressure nominal
Test pressure (MPa)	Set pressure test (Air)	0.9 times of pressure nominal
Main component	Body	WCB, CF8, CF8M, CF3, CF3M
	Bonnet	WCB, CF8, CF8M, CF3, CF3M
	Disc	WCB, CF8, CF8M, CF3, CF3M
	Spring	50CrVA
	Stem	WCB, CF8, CF8M, CF3, CF3M
Applicable medium		Water, air, petroleum gas and weak corrosive medium
Working temperature		≤300℃
Connection method		Flange connection

Product features:

Pilot operated safety valves are suitable for high-pressure and large-diameter applications. Pilot operated safety valves have good sealing performance, and their action is rarely affected by back pressure. The disadvantage of this type of safety valve is that its reliability is related to the main valve and pilot valve. Its action is not as fast and reliable as that of a direct acting safety valve, and its structure is more complex.
