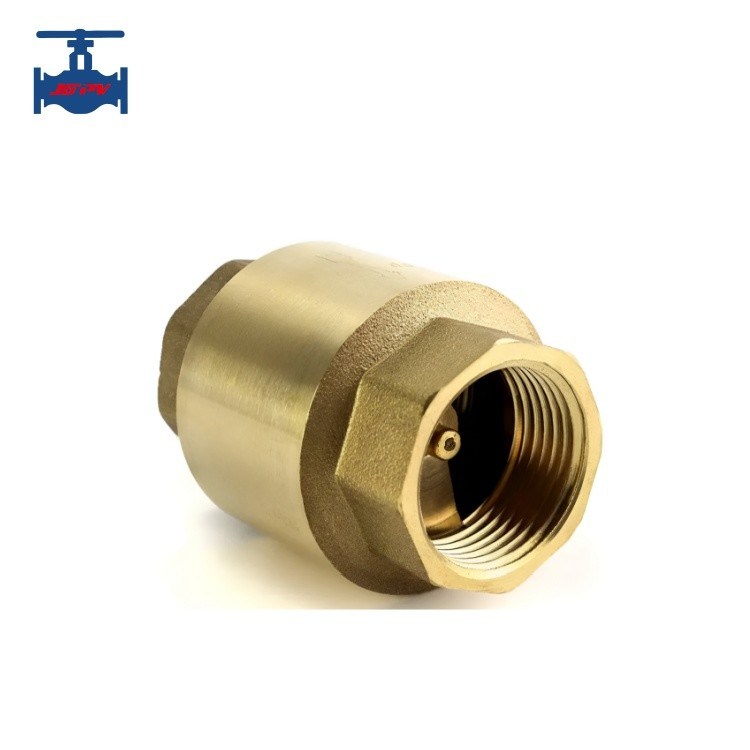

Female Threaded Lift Type Check Valve Brass For Vertical Pipeline

Name: Female Threaded Lift Type Check Valve Brass For Vertical Pipeline
Brand: Shanghai Jianggong Valve Manufacturing Co., Ltd.
SKU: H12H-JGPV
Price: 46.90 USD
Availability: InStock

Product Details

Place of Origin: CHINA

Brand Name: JGPV

Model Number: H12H-JGPV

Payment & Shipping Terms

Minimum Order Quantity: 1 Set

Price: USD3.9/Set - 89.9/Set

Packaging Details: Plywood box safety packing

Delivery Time: 14 days

Payment Terms: L/C, T/T, Western Union

Supply Ability: 1000pcs per month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                Lift Type Check Valve Brass, Female Threaded Check Valve Lift Type, Vertical Pipeline Check Valve


Standard Or Non-standrd:	Standard	Application:	General
Product Feature:	Industrial Valve	Body Material:	Brass
Construction:	Lift Type	Manufacturing Craft:	Forged
Working Temperature:	Normal Temperature	Pressure Application:	Nomal Pressure
Test Standard:	Strength And Sealing Test	Quality Warranty:	18 Months
Name:	Female Threaded Lift Type Check Valve

Standard Or Non-standrd:	Standard
Application:	General
Product Feature:	Industrial Valve
Body Material:	Brass
Construction:	Lift Type
Manufacturing Craft:	Forged
Working Temperature:	Normal Temperature
Pressure Application:	Nomal Pressure
Test Standard:	Strength And Sealing Test
Quality Warranty:	18 Months
Name:	Female Threaded Lift Type Check Valve

Female Threaded Lift Type Check Valve Brass For Vertical Pipeline

Brass Female Threaded Lift Type Check Valve For Vertical Pipeline Use

Product introduction:

Brass female threaded lift type check valve is a brass material that automatically opens and closes the valve disc based on the flow of the medium itself, preventing fluid backflow and ensuring the correct direction of fluid flow. Lift type with brass disc and brass sealing, for vertial pipeline use, high corrosion resistance and durability, stably operation at different temperatures and pressures without being damaged too much.

Product technical parameter:

Nominal Diameter DN (mm)		DN15-DN50
Nominal Pressure PN (MPa)		1.6
Test Pressure (MPa)	Strength (water)	2.4
	Enclose (Water)	1.8
Open and close pressure difference		≤1 bar
Working temperature		0~80℃
Medium suitable		Water, gas and oil

Product features:

1. Brass lift check valve is widely used in production, industrial and other occasions.

2. Brass lift check valve is suitable for various types of fluids, it is with better corrosion resistance in high salinity, marine climates, and other highly corrosive environments. Therefore, they are widely used in industries such as seawater desalination equipment and petroleum drilling and production equipment. However, they are not suitable for strong acid and alkali liquids.

3. Brass raw material sturdy and durable materials, high strength, simple maintenance and long service life.
