CF8 CF8M Screw Type Globe Valve For Nitric Acid Corrosive Medium Pipeline

Name: CF8 CF8M Screw Type Globe Valve For Nitric Acid Corrosive Medium Pipeline
Brand: Shanghai Jianggong Valve Manufacturing Co., Ltd.
SKU: J11W-JGPV
Price: 54.90 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: JGPV

Model Number: J11W-JGPV

Payment & Shipping Terms

Minimum Order Quantity: 1 Set

Price: USD9.9/Set to USD99.9/Set

Packaging Details: Plywood box safety packing

Delivery Time: One week

Payment Terms: L/C, T/T, Western Union

Supply Ability: 500 Set per month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                CF8 Screw Type Globe Valve, CF8M Screw Type Globe Valve, CF8M Globe Valve Screw Type


Standard Or Non-standard:	Standard	Application:	General
Product Feature:	Industrial Valve	Purpose:	Flow Rate Regulation
Working Temperature:	Normal And High Temperature	Pressure Nominal:	Low, Pressure
Port Size:	DN15-DN100	Flow Direction:	Uni-directional
Test Standard:	Strength Test And Sealing Test And Client Requirement	Warranty:	18 Months
Name:	Flanged Globe Valve

Standard Or Non-standard:	Standard
Application:	General
Product Feature:	Industrial Valve
Purpose:	Flow Rate Regulation
Working Temperature:	Normal And High Temperature
Pressure Nominal:	Low, Pressure
Port Size:	DN15-DN100
Flow Direction:	Uni-directional
Test Standard:	Strength Test And Sealing Test And Client Requirement
Warranty:	18 Months
Name:	Flanged Globe Valve

CF8 CF8M Screw Type Globe Valve For Nitric Acid Corrosive Medium Pipeline

CF8 CF8M Screw Type Globe Valve For Nitric Acid Corrosive Medium Pipeline Use

Product introduction:

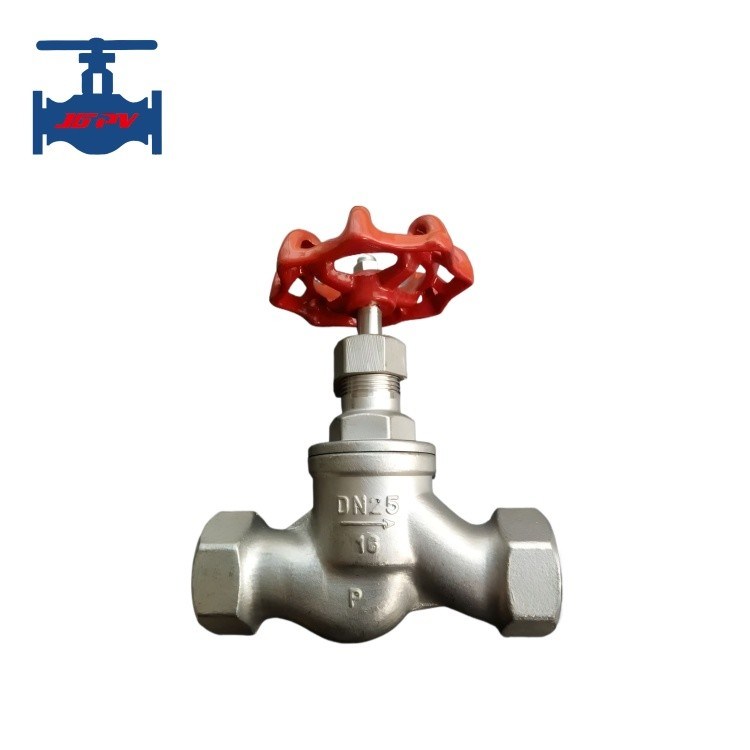

Stainless steel screw type globe valve, with NPT / BSP threaded connection, mainly consists of valve body, valve core, sealing ring, handle and other components. Its characteristics are compact structure, light switch operation, good sealing, and it is used for pipeline cutting and flow regulation in high-pressure, high-temperature, strongly corrosive media. It is widely used in new energy, petroleum, chemical, water treatment and other fields.

Product parameter:

Type Number:		J11W-JGPV
Nominal Pressure PN(MPa)		1.6
Nominal Diameter DN(mm)		15～100
Test pressure (MPa)	Strength (water)	1.5 times of pressure nominal
	Sealing (water)	1.1 times of pressure nominal
Raw material		CF8, CF8M, CF3, CF3M,
Medium suitable:		Water, steam, oil and nitric acid etc corrosive medium
Working temperature		200≤℃
Connection type		Threaded connection
Operational method		Hand-wheel

Product features:

1. Simple structure, easy to install and maintain;
2. There are various types of materials that can adapt to various media;
3. Compact structure, easy operation, and high reliability;
4. Good sealing performance and excellent airtightness;
5. Long service life, high reliability, and strong adaptability.
