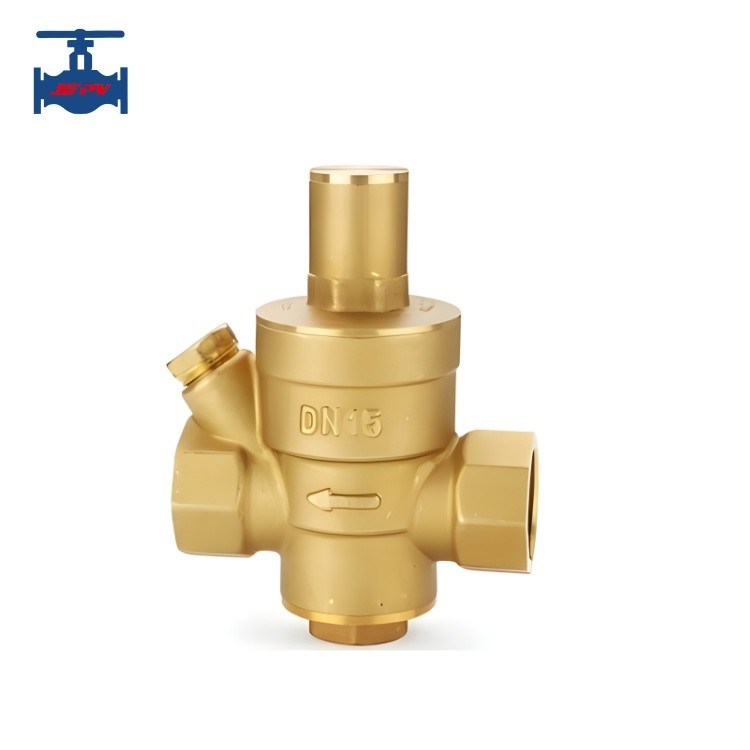

Standard Brass Threaded Piston Type Pressure Reducing Valve For Branch Water Pipeline

Product Details

Place of Origin: CHINA

Brand Name: JGPV

Model Number: Y13X-JGPV

Payment & Shipping Terms

Minimum Order Quantity: 1 Set

Price: USD6.29/Set - 139.9/Set

Packaging Details: Plywood box safety packing

Delivery Time: 14 days

Payment Terms: L/C, T/T, Western Union

Supply Ability: 1000pcs per month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                Brass Piston Type Pressure Reducing Valve, Threaded Piston Type Pressure Reducing Valve


Standard Or Non-standrd:	Standard	Application:	General
Product Feature:	Industrial Valve	Product Function:	Outlet Pressure Reduction
Construction:	Pistong	Raw Material:	Brass
Sealing Type:	NBR	Pressure Application:	Nomal Pressure
Test Standard:	Strength And Sealing Test	Quality Warranty:	18 Months
Name:	Screw Type Valve

Standard Or Non-standrd:	Standard
Application:	General
Product Feature:	Industrial Valve
Product Function:	Outlet Pressure Reduction
Construction:	Pistong
Raw Material:	Brass
Sealing Type:	NBR
Pressure Application:	Nomal Pressure
Test Standard:	Strength And Sealing Test
Quality Warranty:	18 Months
Name:	Screw Type Valve

Standard Brass Threaded Piston Type Pressure Reducing Valve For Branch Water Pipeline

Brass Threaded Piston Type Pressure Reducing Valve For Branch Water Pipeline Use

Product introduction:

A brass pressure reducing valve adjusts the flow rate of the medium by controlling the opening and closing parts inside the valve body, reducing the pressure of the medium. At the same time, it uses the pressure behind the valve to adjust the opening and closing parts, keeping the pressure behind the valve within a certain range. Under the condition that the inlet pressure does not change continuously, the outlet pressure is kept within the set range to protect the subsequent living and production equipment.

Brass pressure reducing valve mainly used in various building water supply systems, fire fighting systems, central air conditioning systems, heating systems, etc. it is used for branch pipeline pressure reduction, which can make the water supply pressure distribution more balanced, avoid partial water supply over-pressure, optimize the water supply division of high-rise buildings. It can replace the frequency modulation variable speed pump in the partition, and can replace the partition pump in the fire water supply system, and used in domestic water supply system to protect all taps and other water appliances.

Product technical parameter:

Working temperature	0→80℃	Pressure nominal(Mpa)	1.6
Medium application	Water, oil and air.	Strength test(Mpa)	2.4
Pressure standard	Sealing:1.76MPa; Strength: 2.4MPa	Seal test(Mpa)	1.76
Connection standard	BSP screw	Max inlet pressure(Mpa)	1.6
Port size	DN15-DN80	Outlet pressure range(Mpa)	0.15-1.2

Product features:

- Accurately control the dynamic and static pressure without fluctuation due to the change of upstream pressure.

- Patented double piston large flow (about 3 times of common similar valves) low flow noise.

- The internal structure is compact and reasonable, saving a lot of installation space consumption.

- The installation environment is simple and the pressure adjustment is wide. The best water supply pressure can be adjusted on site without professional operation.
