Product Details
Place of Origin: CHINA
Brand Name: JGPV
Model Number: GL11W-JGPV
Payment & Shipping Terms
Minimum Order Quantity: 1 Set
Price: USD7.29/Set - 29.9/Set
Packaging Details: Plywood box safety packing
Delivery Time: 14 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000pcs per month
Standard Or Non-standrd: |
Standard |
Application: |
General |
Product Feature: |
Industrial Valve |
Product Function: |
Remove Impurities From The Medium |
Construction: |
Y Type |
Raw Material: |
CF8, CF8M |
Sealing Type: |
Hard Seal |
Pressure Application: |
Nomal Pressure |
Test Standard: |
Strength And Sealing Test |
Quality Warranty: |
18 Months |
Name: |
Screw Type Valve |
Standard Or Non-standrd: |
Standard |
Application: |
General |
Product Feature: |
Industrial Valve |
Product Function: |
Remove Impurities From The Medium |
Construction: |
Y Type |
Raw Material: |
CF8, CF8M |
Sealing Type: |
Hard Seal |
Pressure Application: |
Nomal Pressure |
Test Standard: |
Strength And Sealing Test |
Quality Warranty: |
18 Months |
Name: |
Screw Type Valve |

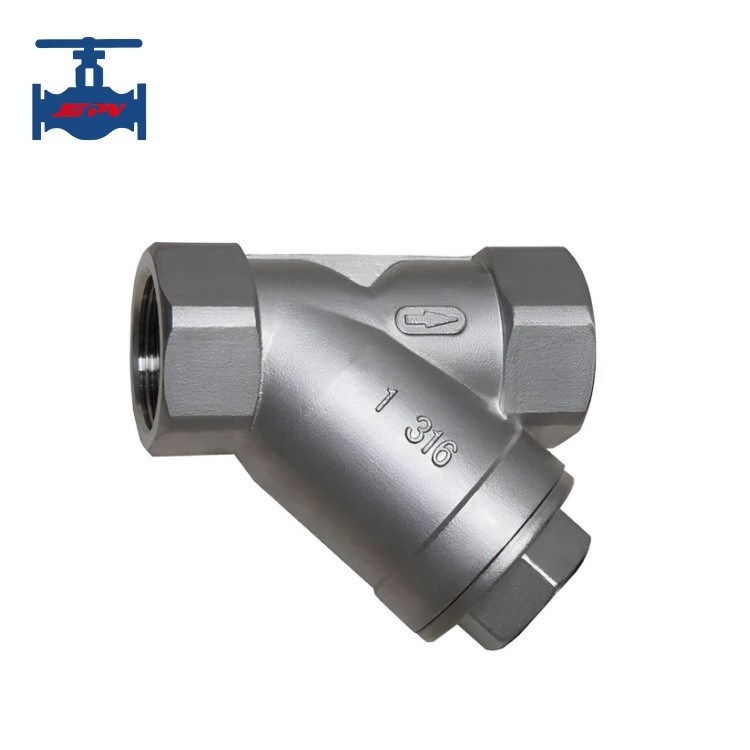

Stainless Steel Raw Material Female Threaded Y Type Strainer For Water Steam Oil and Corrosive Mediums Pipeline Use
Product introduction:
The Y-shaped strainer is an important pipeline filtration device, named after its shape resembling the letter "Y". It is mainly used to remove impurities from the medium, protect valves and equipment from damage, and ensure the normal operation of the system. The application fields of Y-shaped filters include chemical, petrochemical, refrigeration, light industry, food, pharmaceutical and other industries, as well as reclaimed water reuse projects. It plays an important role in protecting equipment, extending service life, and ensuring safe production.
Product technical parameter:
| DN(mm) | 15～100 | |
| PN(MPa) | 1.0～1.6 | |
|
Test pressure Ps(MPa) |
Strength test | 1.5～2.4 |
| Sealing test | 1.1～1.76 | |
| Part | Body | CF8, CF8M |
| Filter | CF8, CF8M | |
| Filtering accuracy | 10～480 Mesh | |
| Medium application | Media containing small amounts of solid impurities | |
| Working temperature | 350℃ | |
| Connection way | NPT, BSP Screw type | |
Product features:
1. Advanced structure: Y type strainer with reasonable design, easy to install and maintain.
2. Low resistance: Y type strainer with flow resistance of the medium during the filtration process is small, which helps to improve system efficiency.
3. Convenient sewage discharge: There is a sewage outlet on Y type strainer for easy removal of impurities on the filter screen.
4. Widely applicable media: Y type strainer can be used for filtering various media such as water, oil, and gas.
5. High filtration accuracy: The mesh size of the Y type strainer can be selected according to different media and filtration requirements, effectively intercepting impurities.
