Safety Pipeline Screw Type Valve Brass Female Thread Ball Valve

Name: Safety Pipeline Screw Type Valve Brass Female Thread Ball Valve
Brand: Shanghai Jianggong Valve Manufacturing Co., Ltd.
SKU: Q11F-JGPV
Price: 61.29 USD
Availability: InStock

Product Details

Place of Origin: CHINA

Brand Name: JGPV

Model Number: Q11F-JGPV

Payment & Shipping Terms

Minimum Order Quantity: 1 Set

Price: USD4.29/Set - 119.9/Set

Packaging Details: Plywood box safety packing

Delivery Time: 14 days

Payment Terms: L/C, T/T, Western Union

Supply Ability: 1000pcs per month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                Safety Pipeline Screw Type Valve, Brass Female Thread Ball Valve


Name:	Screw Type Valve	Standard Or Non-standrd:	Standard
Application:	General	Product Feature:	Industrial Valve
Product Function:	Open And Close Pipeline	Construction:	Ball
Raw Material:	Brass	Sealing Type:	PTFE Soft Sealing
Pressure Application:	Nomal Pressure	Test Standard:	Strength And Sealing Test
Quality Warranty:	18 Months

Name:	Screw Type Valve
Standard Or Non-standrd:	Standard
Application:	General
Product Feature:	Industrial Valve
Product Function:	Open And Close Pipeline
Construction:	Ball
Raw Material:	Brass
Sealing Type:	PTFE Soft Sealing
Pressure Application:	Nomal Pressure
Test Standard:	Strength And Sealing Test
Quality Warranty:	18 Months

Safety Pipeline Screw Type Valve Brass Female Thread Ball Valve

Brass Raw Material Female Threaded Ball Valve With Butterfly Handle

Product introduction:

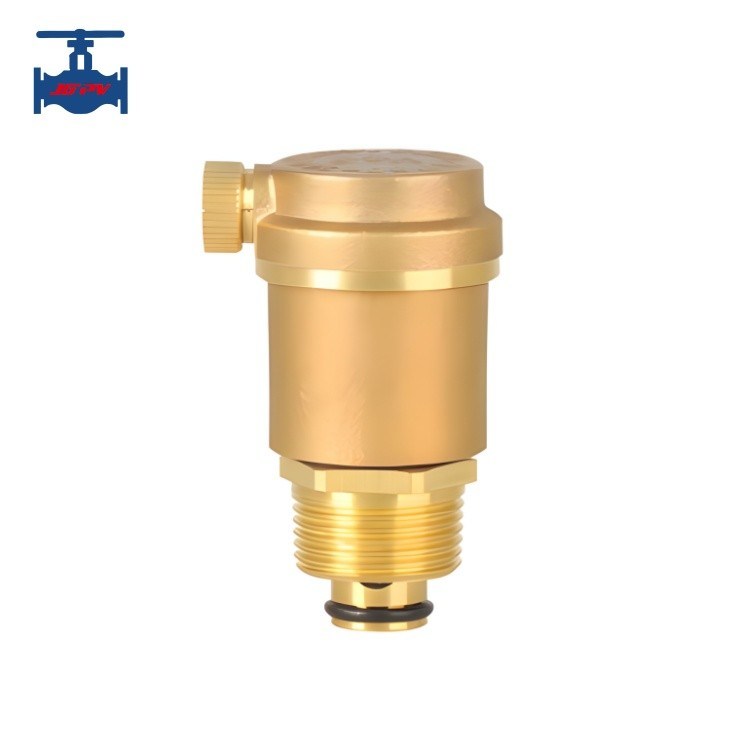

Brass auto air vent product normally used in in HVAC system and pipeline, the harmful effects of gases released by water during heating, such as hydrogen and oxygen, which can damage the system and reduce thermal effects. If these gases cannot be discharged in a timely manner, they can have many negative consequences. For example, corrosion caused by oxidation; The formation of air pockets in the radiator; The imbalance of hot water circulation results in some radiators not heating locally; Noise during pipeline operation with air; The vortex phenomenon of the circulating pump. So the exhaust gas in the system must be discharged in a timely manner, so brass auto air vent plays a very important role in HVAC system for pipeline safety.

Product technical parameter:

DN(mm)	15(1/2")~25(1")
PN(Mpa)	1.0~1.6
Working temperature(℃)	-20~90
Medium application	Water and water mixture

Product features:

1. The float of the air vent valve is made of low-density PP material, which will not deform even if soaked in high-temperature water for a long time. It will not cause difficulties in the movement of the float.

2. The lever of the float is made of hard plastic, and the connection between the lever and the float and the support is movable, so it will not rust during long-term operation, causing the system to malfunction and leakage.

3. The sealing end face of the lever is supported by springs, which can expand and contract with the movement of the lever, ensuring sealing performance without exhaust.
