Product Details
Place of Origin: CHINA
Brand Name: JGPV
Model Number: Z15H-JGPV
Payment & Shipping Terms
Minimum Order Quantity: 1 Set
Price: USD4.99/Set - 129.9/Set
Packaging Details: Plywood box safety packing
Delivery Time: 14 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000pcs per month
Standard Or Non-standrd: |
Standard |
Application: |
General |
Product Feature: |
Industrial Valve |
Product Function: |
Open And Close Pipeline |
Construction: |
Gate |
Manufacturing Craft: |
Casting |
Working Temperature: |
Normal Temperature |
Pressure Application: |
Nomal Pressure |
Test Standard: |
Strength And Sealing Test |
Quality Warranty: |
18 Months |
Name: |
Screw Type Valve |
Standard Or Non-standrd: |
Standard |
Application: |
General |
Product Feature: |
Industrial Valve |
Product Function: |
Open And Close Pipeline |
Construction: |
Gate |
Manufacturing Craft: |
Casting |
Working Temperature: |
Normal Temperature |
Pressure Application: |
Nomal Pressure |
Test Standard: |
Strength And Sealing Test |
Quality Warranty: |
18 Months |
Name: |
Screw Type Valve |

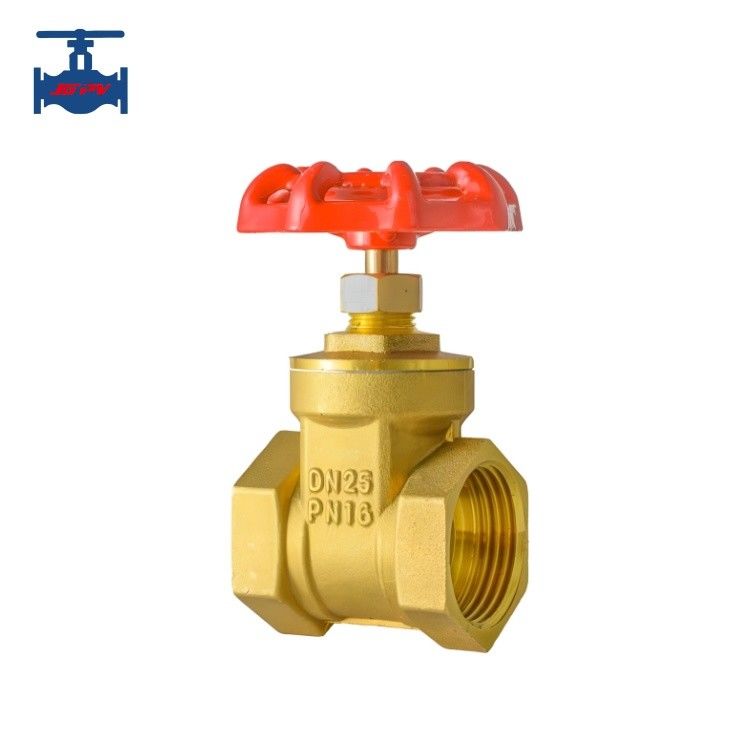

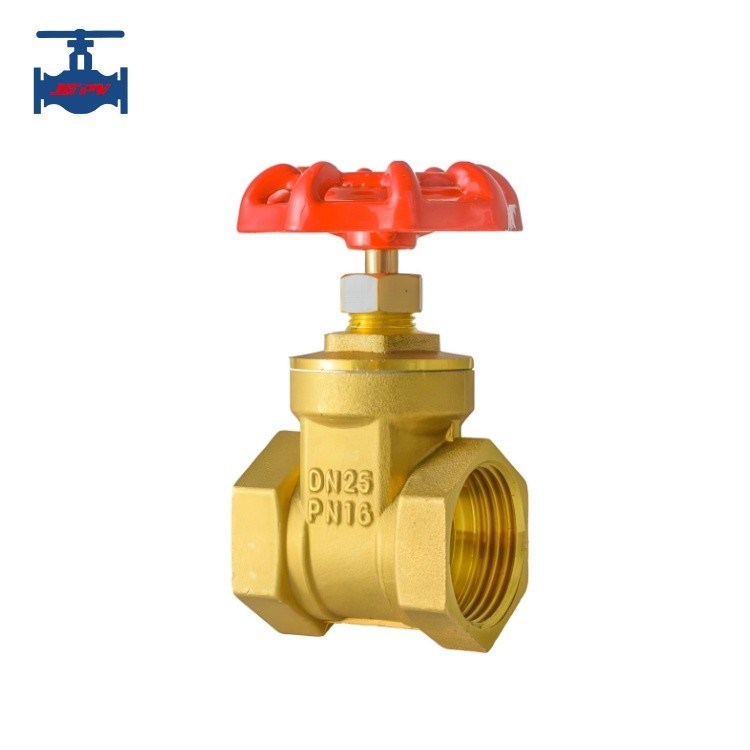

Brass Female Threaded Gate Valve With Handwheel Operation For Water Pipeline Use
Product introduction:
A gate valve is an opening and closing component, the direction of movement of which is perpendicular to the direction of the fluid. The gate valve can only be fully open and fully closed, and cannot be adjusted or throttled.
The brass raw material female threaded gate valve adopts a top mounted structure, which reduces the connection bolts of the valve body under high pressure and large diameter conditions, enhances the reliability of the valve, and can overcome the impact of system weight on the normal operation of the valve. Copper gate valves are widely used as separation and convergence or flow switching devices for medium in pipelines such as coal chemical, petrochemical, rubber, paper-making, pharmaceuticals, etc
Product technical parameter:
| Nominal Diameter DN (mm) | DN15-DN100 | |
| Nominal Pressure PN (MPa) | 1.6 | |
| Test Pressure (MPa) | Strength (water) | 2.4 |
| Enclose (Water) | 1.8 | |
| Working temperature | 0~80℃ | |
| Medium suitable | Water, gas and oil | |
Product features:
1. Good corrosion resistance.
2. Excellent sealing performance.
3. Wide application in water supply, air conditioning system, paper-making and petroleum and chemical industries.
