ISO9001 and ISO14001 Certified Copper Ball Valve with 18 Months Warranty and Internal Thread Two-Piece Manual Design

Product Details

Place of Origin: China

Brand Name: JGPV

Payment & Shipping Terms

Minimum Order Quantity: 1set

Packaging Details: Plywood box safety packing

Delivery Time: 14 days

Payment Terms: L/C,T/T,Western Union

Supply Ability: 500 Set per month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                ISO9001 Certified Ball Valve, ISO14001 Certified Copper Ball Valve, 18 Months Warranty Screw Type Valve


Application::	General	Certificate::	ISO9001, ISO14001
Medium Type::	Water, Steam And Oil Etc.	Connection::	Threaded / Flanged / Welded
Standard Or Non-Standard::	Standard	Flow Way::	Two Way
Actuation::	Manual, Electric, Pneumatic,Automatic	Sealing Performance::	Sealing
Working Temperature::	Normal Temperature And High Temperature	Pressure Application::	Normal Pressure
Quality Warranty::	18 Months

Application::	General
Certificate::	ISO9001, ISO14001
Medium Type::	Water, Steam And Oil Etc.
Connection::	Threaded / Flanged / Welded
Standard Or Non-Standard::	Standard
Flow Way::	Two Way
Actuation::	Manual, Electric, Pneumatic,Automatic
Sealing Performance::	Sealing
Working Temperature::	Normal Temperature And High Temperature
Pressure Application::	Normal Pressure
Quality Warranty::	18 Months

ISO9001 and ISO14001 Certified Copper Ball Valve with 18 Months Warranty and Internal Thread Two-Piece Manual Design

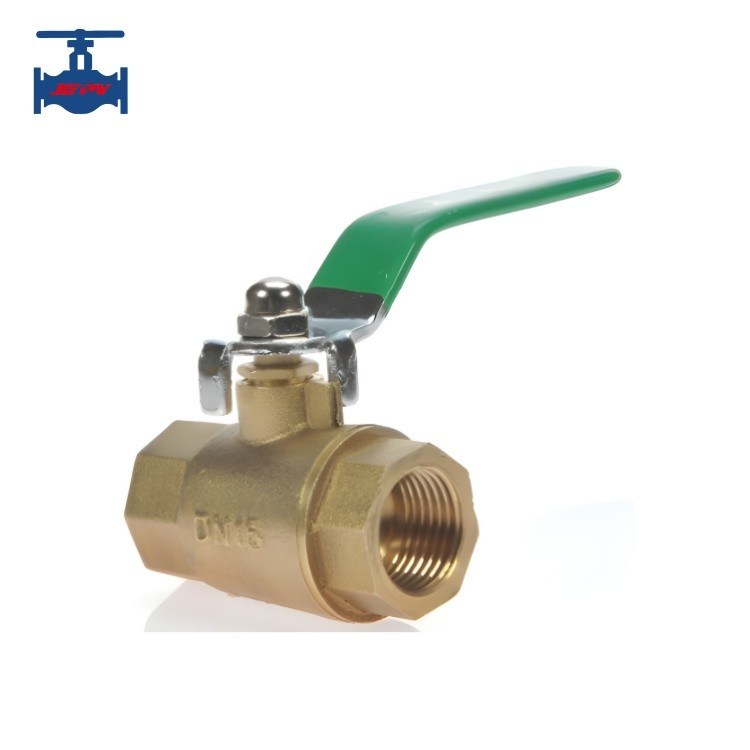

Internal Thread Two-Piece Manual Copper Ball Valve

Product Overview

Ball valves feature a spherical disc with a circular channel that rotates to control flow. The internal thread two-piece manual copper ball valve offers precise flow control with a 90° rotation operation, providing tight sealing and minimal fluid resistance.

Key Specifications

Parameter	Value
Nominal Diameter DN (mm)	15-100
Nominal Pressure PN (MPa)	1.6-2.5
Test Pressure (MPa)	Strength (water): 3.8 Enclose (Water): 2.75
Working Temperature	≤120℃
Connection Types	BSPT, NPT

Construction Materials

Valve Body: Stainless Steel
Ball: Stainless Steel
Seat: PTFE
Axle: Stainless Steel

Technical Advantages

Compact two-piece design for easy maintenance and installation in any position
Lightweight operation with 90° rotation for quick opening/closing
Excellent sealing performance with PTFE seats
Minimal fluid resistance equal to straight pipe sections
Durable construction suitable for petroleum, chemical, power generation, and other industrial applications
Vacuum system compatible with reliable sealing

Compatible Media

Water, steam, oil, oxygen, hydrogen peroxide, methane, ethylene, and other general industrial media.
