Easy Install Brass Screw Type Valve Female Threaded Y Type Strainer

Name: Easy Install Brass Screw Type Valve Female Threaded Y Type Strainer
Brand: Shanghai Jianggong Valve Manufacturing Co., Ltd.
SKU: GL11F-JGPV
Price: 61.29 USD
Availability: InStock

Product Details

Place of Origin: CHINA

Brand Name: JGPV

Model Number: GL11F-JGPV

Payment & Shipping Terms

Minimum Order Quantity: 1 Set

Price: USD4.29/Set - 119.9/Set

Packaging Details: Plywood box safety packing

Delivery Time: 14 days

Payment Terms: L/C, T/T, Western Union

Supply Ability: 1000pcs per month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                Brass Screw Type Valve, Brass Y Shaped Strainer, Female Threaded Y Type Strainer


Standard Or Non-standrd:	Standard	Application:	General
Product Feature:	Industrial Valve	Product Function:	Open And Close Pipeline
Construction:	Y Type	Raw Material:	Brass
Sealing Type:	PTFE Soft Sealing	Pressure Application:	Nomal Pressure
Test Standard:	Strength And Sealing Test	Quality Warranty:	18 Months
Name:	Screw Type Valve

Standard Or Non-standrd:	Standard
Application:	General
Product Feature:	Industrial Valve
Product Function:	Open And Close Pipeline
Construction:	Y Type
Raw Material:	Brass
Sealing Type:	PTFE Soft Sealing
Pressure Application:	Nomal Pressure
Test Standard:	Strength And Sealing Test
Quality Warranty:	18 Months
Name:	Screw Type Valve

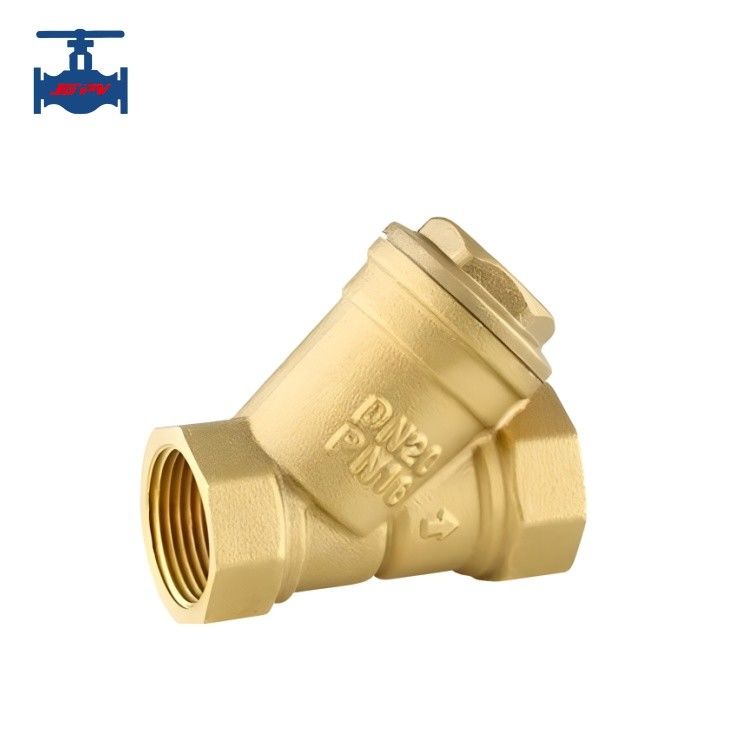

Easy Install Brass Screw Type Valve Female Threaded Y Type Strainer

Brass Raw Material Female Threaded Y Type Strainer For Water Pipeline Use

Product introduction:

A brass raw material female threaded Y-shaped strainer is a small device that removes small amounts of solid particles from liquids, which can protect the normal operation of the equipment. When the fluid enters the filter cartridge with a certain specification of filter screen, its impurities are blocked, and the clean filtrate is discharged from the filter outlet. When cleaning is needed, simply remove the detachable filter cartridge, process it, and re-install it. Therefore, maintenance is extremely convenient.

Product technical parameter:

DN(mm)		15～100
PN(MPa)		1.0～1.6
Test pressure Ps(MPa)	Strength test	1.5～2.4
	Sealing test	1.1～1.76
Part	Body	Brass
	Filter	Stainless steel
Filtering accuracy		10～480 Mesh
Medium application		Media containing small amounts of solid impurities
Working temperature		110℃
Connection way		Screw type

Product features:

1. Simple structure, small footprint, and simple cleaning.

2. Easy to install, low maintenance cost, and large flow rate.
