Product Details
Place of Origin: CHINA
Brand Name: JGPV
Model Number: ARVX-JGPV
Payment & Shipping Terms
Minimum Order Quantity: 1 Set
Price: USD16.9/Set - 29.9/Set
Packaging Details: Plywood box safety packing
Delivery Time: 14 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000pcs per month
Standard Or Non-standrd: |
Standard |
Application: |
General |
Product Function: |
Quick Air Vent |
Product Application: |
Water Supply System |
Working Temperature: |
Normal Temperature |
Pressure Application: |
Nomal Pressure |
Power: |
Hydraulic |
Manufacturing Craft: |
Casting |
Test Standard: |
Strength And Sealing Test |
Quality Warranty: |
18 Months |
Name: |
Screw Type Valve |
Standard Or Non-standrd: |
Standard |
Application: |
General |
Product Function: |
Quick Air Vent |
Product Application: |
Water Supply System |
Working Temperature: |
Normal Temperature |
Pressure Application: |
Nomal Pressure |
Power: |
Hydraulic |
Manufacturing Craft: |
Casting |
Test Standard: |
Strength And Sealing Test |
Quality Warranty: |
18 Months |
Name: |
Screw Type Valve |

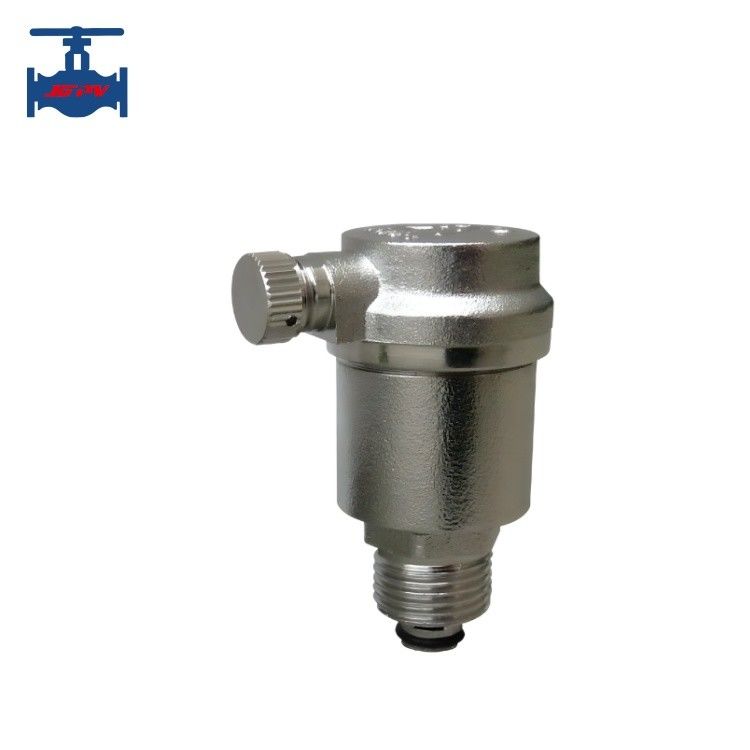

Stainless Steel 304 NPT BSP Female Threaded Automatic Micro Air Exhause Valve
Product introduction:
Stainless steel auto exhaust valve is a common industrial valve, whose main function is to eliminate air and other gases in the pipeline to ensure the normal flow of fluid in the pipeline. Compared with domestic stainless steel exhaust valves, imported stainless steel exhaust valves are more reliable in quality, more durable, and more suitable for various harsh environments. This type of exhaust valve can achieve automatic exhaust, avoiding the tedious and erroneous manual operation. These stainless steel automatic exhaust valves adopt advanced control technology, which can achieve efficient automatic control, thereby ensuring the efficiency and accuracy of exhaust.
Stainless steel auto exhaust valve normally used in in HVAC system and pipeline, the harmful effects of gases released by water during heating, such as hydrogen and oxygen, which can damage the system and reduce thermal effects. If these gases cannot be discharged in a timely manner, they can have many negative consequences. For example, corrosion caused by oxidation; The formation of air pockets in the radiator; The imbalance of hot water circulation results in some radiators not heating locally; Noise during pipeline operation with air; The vortex phenomenon of the circulating pump. So the exhaust gas in the system must be discharged in a timely manner, so brass auto air vent plays a very important role in HVAC system for pipeline safety.
Product technical parameter:
| DN(mm) | 15(1/2")~25(1") |
| PN(Mpa) | 1.0~1.6 |
| Working temperature(℃) | -20~90 |
| Medium application | Water and water mixture |
Product features:
1. The float of the air vent valve is made of low-density PP material, which will not deform even if soaked in high-temperature water for a long time. It will not cause difficulties in the movement of the float.
2. The lever of the float is made of hard plastic, and the connection between the lever and the float and the support is movable, so it will not rust during long-term operation, causing the system to malfunction and leakage.
3. The sealing end face of the lever is supported by springs, which can expand and contract with the movement of the lever, ensuring sealing performance without exhaust.
