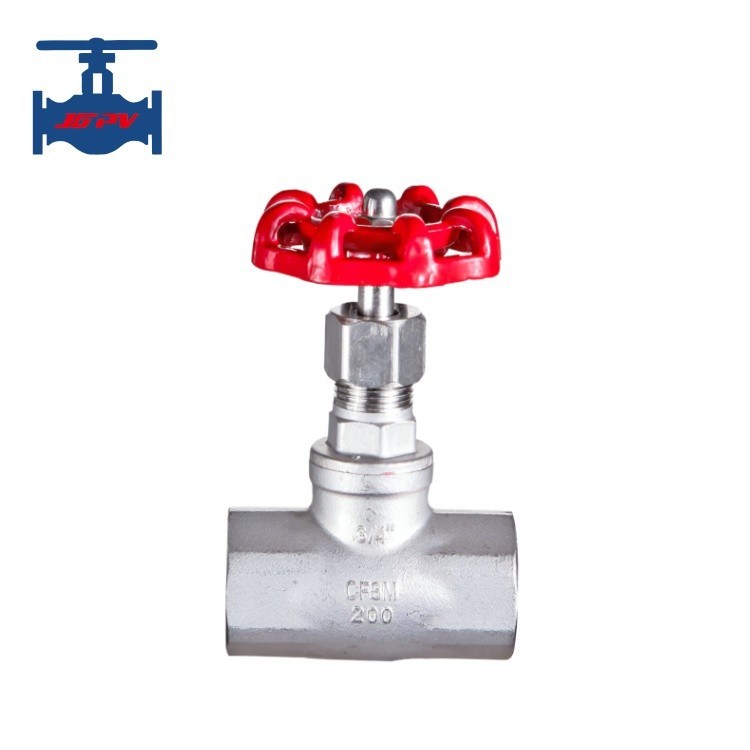

CF8 CF8M NPT Threaded Globe Valve Class 150 For Corrosive Medium Pipeline Use

Name: CF8 CF8M NPT Threaded Globe Valve Class 150 For Corrosive Medium Pipeline Use
Brand: Shanghai Jianggong Valve Manufacturing Co., Ltd.
SKU: J11W-JGPV
Price: 54.90 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: JGPV

Model Number: J11W-JGPV

Payment & Shipping Terms

Minimum Order Quantity: 1 Set

Price: USD9.9/Set to USD99.9/Set

Packaging Details: Plywood box safety packing

Delivery Time: One week

Payment Terms: L/C, T/T, Western Union

Supply Ability: 500 Set per month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                NPT Threaded Globe Valve, Threaded Globe Valve Class 150, Class 150 Globe Valve Threaded


Standard Or Non-standard:	Standard	Application:	General
Product Feature:	Industrial Valve	Purpose:	Flow Rate Regulation
Working Temperature:	Normal And High Temperature	Pressure Nominal:	Low Pressure
Port Size:	1/2" - 4"	Sealing Type:	Soft Seal And Hard Seal
Test Standard:	Strength Test And Sealing Test And Client Requirement	Warranty:	18 Months
Name:	Flanged Globe Valve

Standard Or Non-standard:	Standard
Application:	General
Product Feature:	Industrial Valve
Purpose:	Flow Rate Regulation
Working Temperature:	Normal And High Temperature
Pressure Nominal:	Low Pressure
Port Size:	1/2" - 4"
Sealing Type:	Soft Seal And Hard Seal
Test Standard:	Strength Test And Sealing Test And Client Requirement
Warranty:	18 Months
Name:	Flanged Globe Valve

CF8 CF8M NPT Threaded Globe Valve Class 150 For Corrosive Medium Pipeline Use

CF8 CF8M NPT Threaded Globe Valve Class 150 For Corrosive Medium Pipeline Use

Stainless steel CF8 CF8M BSP NPT threaded globe valve product is a manual valve commonly used in pipeline systems to control the flow of liquids or gases, allowing them to flow smoothly or stop in the pipeline. It consists of an integrated body, cover, threaded connecting pipe.

Stainless steel CF8 CF8M BSP NPT threaded globe valve products are suitable for pipeline systems that transport high-temperature and high-pressure liquids and gases, such as chemical, petroleum, pharmaceutical, metallurgical, power and other industries. In addition, threaded globe valves can also be used in fields such as cooling water, food, medicine, hygiene, and construction.

Product parameter:

Type Number:		J11W-JGPV
Nominal Pressure PN(MPa)		150lb
Nominal Diameter DN(mm)		1/2" - 4"
Test pressure (MPa)	Strength (water)	1.5 times of pressure nominal
	Sealing (water)	1.1 times of pressure nominal
Raw material		CF8, CF8M, CF3, CF3M,
Medium suitable:		Water, steam, oil and nitric acid etc corrosive medium
Working temperature		200≤℃
Connection type		Threaded connection
Operational method		Hand-wheel

Product features:

1. It has the characteristics of being small and lightweight, making it easy to install and operate.

2. The threaded connection design allows the valve to be firmly connected to the pipeline, avoiding issues of air or liquid leakage.

3. The threaded valve is made of metal material, which is corrosion-resistant and has good pressure resistance.

4. High reliability, ensuring that the valve will not leak when closed.
