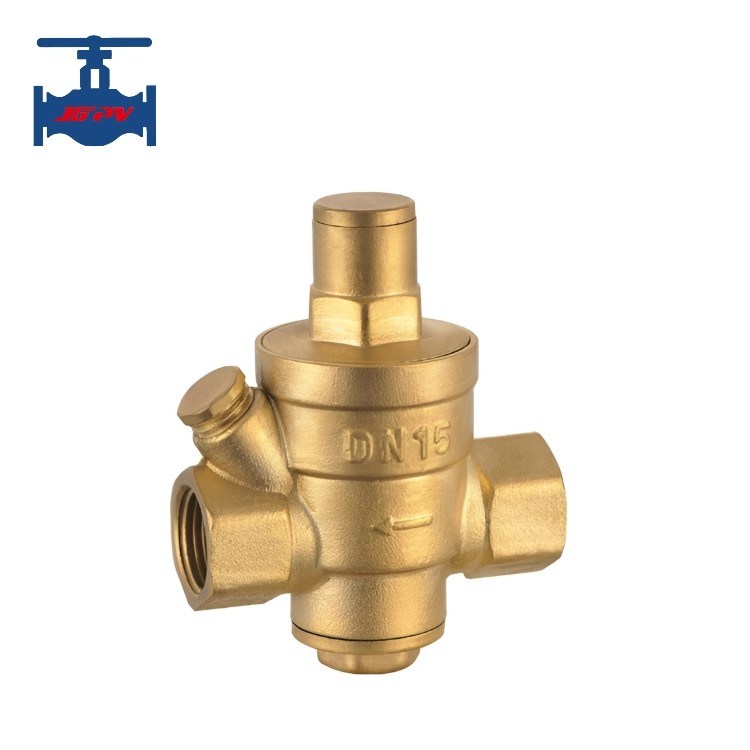

Brass Piston Type Pressure Reducing Valve For Branch Water Pipeline

Name: Brass Piston Type Pressure Reducing Valve For Branch Water Pipeline
Brand: Shanghai Jianggong Valve Manufacturing Co., Ltd.
SKU: Y11X-JGPV
Price: 43.90 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: JGPV

Model Number: Y11X-JGPV

Payment & Shipping Terms

Minimum Order Quantity: 1 Set

Price: USD18.9/Set to USD69.9/Set

Packaging Details: Plywood box safety packing

Delivery Time: One week

Payment Terms: L/C, T/T, Western Union

Supply Ability: 1000 Set per month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                Brass Piston Type Pressure Reducing Valve, Brass Pressure Reducing Valve Piston Type


Standard Or Non-standard:	Standard	Application:	Branch Water Pipeline Application
Medium Type:	Water	Working Temperature:	Normal Temperature
Pressure Application:	Low Pressure	Structure:	Piston Type
Manufacturing Craft:	Casting	Port Size:	DN15-DN65
Test Standard:	Strength Test And Sealing Test And Client Requirement	Quality Warranty:	18 Months
Name:	Screw Type Valve

Standard Or Non-standard:	Standard
Application:	Branch Water Pipeline Application
Medium Type:	Water
Working Temperature:	Normal Temperature
Pressure Application:	Low Pressure
Structure:	Piston Type
Manufacturing Craft:	Casting
Port Size:	DN15-DN65
Test Standard:	Strength Test And Sealing Test And Client Requirement
Quality Warranty:	18 Months
Name:	Screw Type Valve

Brass Piston Type Pressure Reducing Valve For Branch Water Pipeline

Brass Raw Material Piston Type Pressure Reducing Valve For Branch Water Pipeline Use

Product introduction:

A brass raw material threaded pressure reducing valve adjusts the flow rate of the medium by controlling the opening and closing parts inside the valve body, reducing the pressure of the medium. At the same time, it uses the pressure behind the valve to adjust the opening and closing parts, keeping the pressure behind the valve within a certain range. Under the condition that the inlet pressure does not change continuously, the outlet pressure is kept within the set range to protect the subsequent living and production equipment.

This adjustable pressure reducing valve is mainly used in various building water supply systems, fire fighting systems, central air conditioning systems and heating systems, for branch pipeline pressure reduction, which can make the water supply pressure distribution more balanced, avoid partial water supply over-pressure, optimize the water supply division of high-rise buildings.

Product parameters:

Performance specification table
Nominal pressure		1.6 MPa
Test pressure standard	Strength test (water)	2.4	MPa
	Sealing test (water)	1.76
	Sealing test (air)	0.6
	Maximum working temperature	80	℃
Medium applicable: Water

Product features:

This series of pressure reducing valves belongs to the pilot piston type pressure reducing valve. It consists of two parts: the master cylinder and the pilot valve. The outlet pressure is set by adjusting the spring pressure, and the change in outlet pressure is sensed by the diaphragm. The pilot valve drives the piston to adjust the size of the flow area at the throttle position of the master cylinder (i.e. the corresponding change in the control channel cross-sectional area), achieving the conversion of flow rate and pressure and it is with below advantages,

1. Compact structure and light weight, due to the use of a hydraulic balance mechanism, this valve has the advantages of small volume and light weight;
2. Good sealing performance, it is adopting a PTFE packing sealing structure, the sealing performance is good;
3. Effortless operation, Effortless rotation of the handle;
4. Long service life, maintaining good performance after 300000 fatigue tests
5. Easy installation and maintenance, the internal thread connection method is suitable for the installation and disassembly of various pipelines
