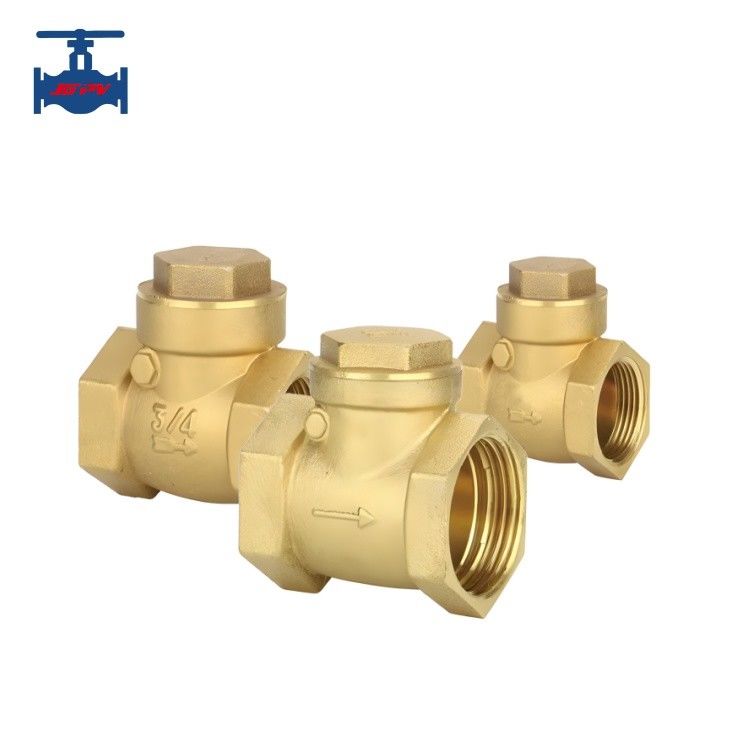

Brass Female Threaded Swing Check Valve For Medium Backflow Prevention

Name: Brass Female Threaded Swing Check Valve For Medium Backflow Prevention
Brand: Shanghai Jianggong Valve Manufacturing Co., Ltd.
SKU: H14-JGPV
Price: 51.90 USD
Availability: InStock

Product Details

Place of Origin: CHINA

Brand Name: JGPV

Model Number: H14-JGPV

Payment & Shipping Terms

Minimum Order Quantity: 1 Set

Price: USD4.9/Set - 99.9/Set

Packaging Details: Plywood box safety packing

Delivery Time: 14 days

Payment Terms: L/C, T/T, Western Union

Supply Ability: 1000pcs per month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                Brass Threaded Swing Check Valve, Female Threaded Swing Check Valve


Standard Or Non-standrd:	Standard	Application:	General
Product Function:	Medium Backflow Prevention	Construction:	Swing Type
Working Temperature:	Normal Temperature	Pressure Application:	Nomal Pressure
Power:	Hydraulic	Manufacturing Craft:	Casting
Body Material:	Brass	Quality Warranty:	18 Months
Name:	Screw Type Valve

Standard Or Non-standrd:	Standard
Application:	General
Product Function:	Medium Backflow Prevention
Construction:	Swing Type
Working Temperature:	Normal Temperature
Pressure Application:	Nomal Pressure
Power:	Hydraulic
Manufacturing Craft:	Casting
Body Material:	Brass
Quality Warranty:	18 Months
Name:	Screw Type Valve

Brass Female Threaded Swing Check Valve For Medium Backflow Prevention

Brass Female Threaded Swing Check Valve For Medium Backflow Prevention

Product introduction:

Brass female threaded check valve is a brass material that automatically opens and closes the valve disc based on the flow of the medium itself, preventing fluid backflow and ensuring the correct direction of fluid flow. It is a valve with high corrosion resistance and durability. They can operate stably at different temperatures and pressures without being damaged too much.

Product technical parameter:

Nominal Diameter DN (mm)		DN15-DN100
Nominal Pressure PN (MPa)		1.6
Test Pressure (MPa)	Strength (water)	2.4
	Enclose (Water)	1.8
Open and close pressure difference		≤0.1MPa
Working temperature		0~80℃
Medium suitable		Water

Product features:

1. Brass check valves have a higher price and are suitable for production, industrial and other occasions.

2. Brass check valves are suitable for various types of fluids. Copper valves have better corrosion resistance in high salinity, marine climates, and other highly corrosive environments. Therefore, they are widely used in industries such as seawater desalination equipment and petroleum drilling and production equipment. However, they are not suitable for strong acid and alkali liquids.

3. Brass check valves are made of sturdy and durable materials, with simple maintenance, long service life, and high strength;
